4K Endoscope Camera System
Created with Pixso. Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface

Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface

Brand Name: TUYOU
Model Number: TV-LSD101A
Price: $5,340.00 - $6,250.00/units
Detail Information
Place of Origin:
Guangdong, China
Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Free Spare Parts
Material:
Acrylic, Metal, Plastic
Shelf Life:
2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
4K Endoscope Camera System
Application:
Laparoscopy/gynecology/Urology/ENT Surgery Etc.
Properties:
Surgical Instruments
Power:
AC110V-240V
Image Sensor:
1/1.8" SONY CMOS
Input Interface:
SDI 4K 60FPS
Output Interface:
HDMI/SDI/CVBS
SNR(Signal Noise Ratio):
More Than 42Db(AGC Off)
U Disk:
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos
AWB:
Support
Highlight:

4k camera endoscope

,

4k endoscope camera system

,

led light source camera endoscope

Product Description
Product Parameters
Item No.
TV-LSD101A (4K Carema)
System Parameters
Input Interface
SDI 4K 60FPS
Output Interface
HDMI/SDI/CVBS
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Noise
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
4.3KG
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
3864(H) × 2192(V)Approx. 8.46M Pixels
Resolution
SDI 4K 60fps
Min-illumination
Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
D-ZOOM
Image zoom 1-8X
Color
RED/GREEN/YELLOW/BLUE
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <3W
Working Current
250mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
100W
Illuminance
400W LUX
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8
Products Description

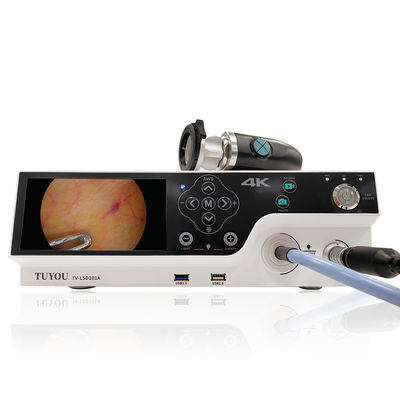

4K Digital Video Camera System Medical Endoscope Camera with LED Light Source

Product Composition Introduction:

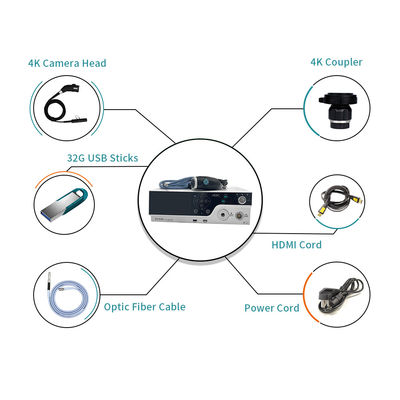

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).


● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;

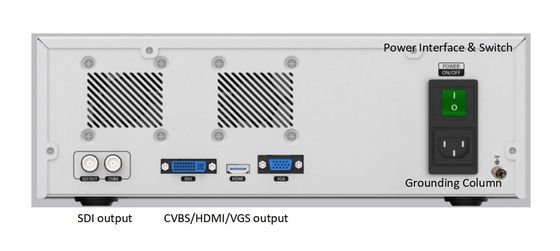

● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 0
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 1
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 2
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 3
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 4

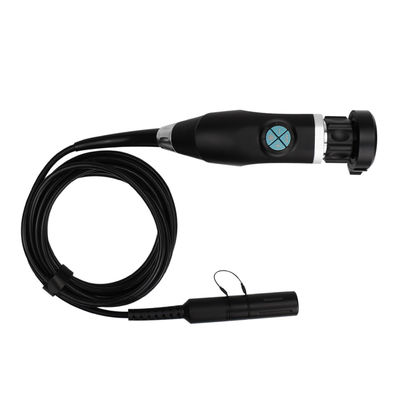

- Two camera couplers for your choice.
- Three types of camera buttons for you to choose from.
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 5
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 6
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 7

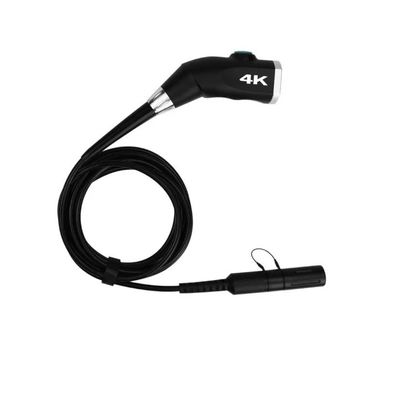

Three types of handle camera can be choiced
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 8
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 9
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 10

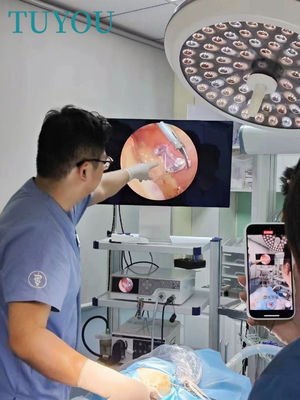

Customer Feedback
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 11
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 12
Company Profile
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 13

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 14
Certifications
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 15
Packing & Delivery
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 16
4K Digital Video Camera System Medical Endoscope Camera with LED Light Source Packaging Standard Carton Box 1 Set/Carton box
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 17
Metal 4K 60FPS Endoscope Camera System with LED Light Source and SDI Input Interface 18
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
