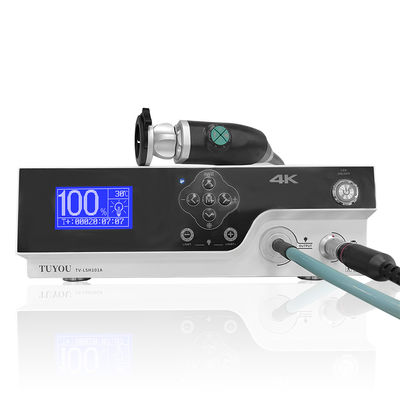

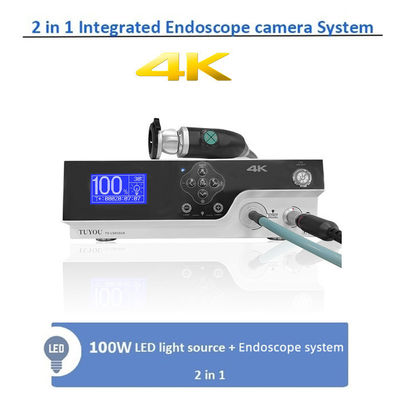

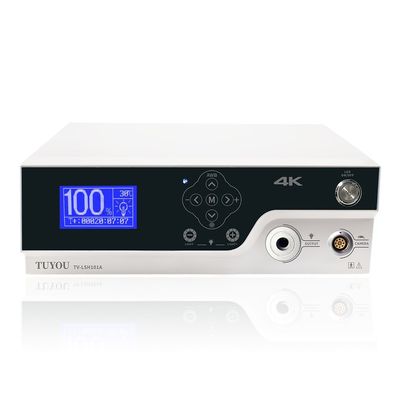

Product Composition Introduction:

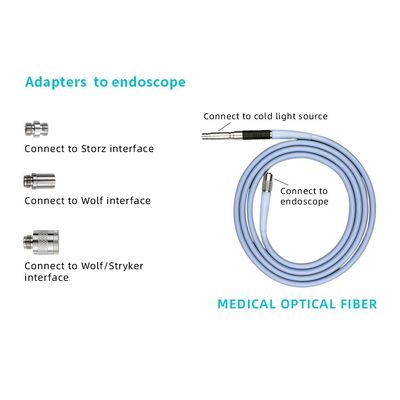

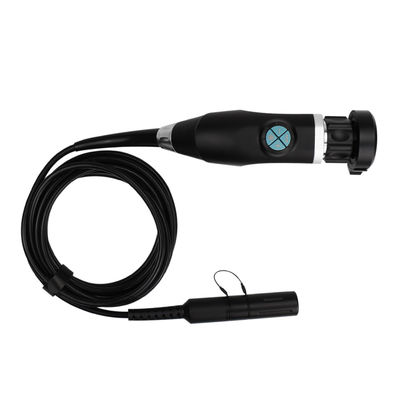

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical
adapter (optical interface).
|
| Brand Name: | TUYOU |
| Model Number: | TV-LSH101A |
| Price: | $3,980.00/units 1-9 units |
Item No. | TV-LSH101A (4K Carema) |
System Parameters | ||
Input Interface | SDI 4K 60FPS | |
Output Interface | HDMI/SDI | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 4.2KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” CMOS | |
Effective Pixels | 3864(H) × 2192(V)Approx. 8.46M pixels | |
Resolution | SDI 4K 60fps | |
FREEZE | The picture freezes | |
AWB | One Button White Balance | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 1-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~70℃ | |
Power(Max.) Supply | DC12V ±10% <3W | |
Working Current | 250mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Rated Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 5800-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8 | |
Video
Video
Video
Video
Video
|
|
| Brand Name: | TUYOU |
| Model Number: | TV-LSH101A |
| Price: | $3,980.00/units 1-9 units |
| Packaging Details: | 4K UHD 100W Light Source Medical Endoscope Camera System for Laparoscopy ENT Arthroscope Standard carton with foam 1Set/Carton Box |
Item No. | TV-LSH101A (4K Carema) |
System Parameters | ||
Input Interface | SDI 4K 60FPS | |
Output Interface | HDMI/SDI | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 4.2KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” CMOS | |
Effective Pixels | 3864(H) × 2192(V)Approx. 8.46M pixels | |
Resolution | SDI 4K 60fps | |
FREEZE | The picture freezes | |
AWB | One Button White Balance | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 1-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~70℃ | |
Power(Max.) Supply | DC12V ±10% <3W | |
Working Current | 250mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Rated Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 5800-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8 | |
