Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-Y5D100B
Payment & Shipping Terms
Price: $950.00 - $1,250.00/sets
Packaging Details: Standard carton with foam
1Set/Carton Box

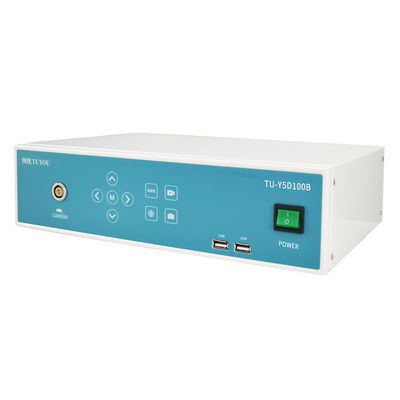

Supply Ability: 2000 Set/Sets per Month HD USB Record Medical Endoscopy Video Processor for Gynecology
Power Source: |
Electric |
Warranty: |
2 Years |
After-sale Service: |
Online Technical Support |
Material: |
Metal, Plastic |
Shelf Life: |
2 Years |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Product Name: |
Endoscopy Video Processor |
Keyword: |
1080P USB Record Endoscope System |
Properties: |
Surgical Instruments |
Power: |
AC110V-240V |
Image Sensor: |
1/1.8" SONY CMOS |
Resolution: |
1080P |
Video Output: |
HDMI/DVI/VGA/SDI/CVBS |
SNR(Signal Noise Ratio): |
<45db |
AWB: |
Support |
Freeze: |
Support |
Power Source: |
Electric |
Warranty: |
2 Years |
After-sale Service: |
Online Technical Support |
Material: |
Metal, Plastic |
Shelf Life: |
2 Years |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Product Name: |
Endoscopy Video Processor |
Keyword: |
1080P USB Record Endoscope System |
Properties: |
Surgical Instruments |
Power: |
AC110V-240V |
Image Sensor: |
1/1.8" SONY CMOS |
Resolution: |
1080P |
Video Output: |
HDMI/DVI/VGA/SDI/CVBS |
SNR(Signal Noise Ratio): |
<45db |
AWB: |
Support |
Freeze: |
Support |
Item No. | TU-Y5D100B(1080P Carema) |
System Parameters | ||
Input Interface | 1080P | |
Output Interface | HDMI+DVI+VGA+SDI+CVBS | |
Keypad Control | Control the motherboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
U Disk | U disk USB2.0+USB3.0 (up to 32GB) to record and take photos | |
Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom | |
SNR(Signal Noise Ratio) | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Product Color | Black or Blue is available | |
Camera Parameters | ||
Image Sensor | 1/1.8” CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Resolution | SDI 1080P | |
D-ZOOM | 0-8x | |
Brightness | 1-30 steps | |
Lens Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~60℃ | |
Power(Max.) Supply | DC12V ±10%<3W | |
Working Current | 140mA±10mA | |
