4K Endoscope Camera System
Created with Pixso. High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source

High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source

Brand Name: TUYOU
Model Number: TU-15LSH1A
Price: $3,099.00/sets 1-1 sets
Detail Information
Place of Origin:
Guangdong, China
Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Online Technical Support
Material:
Metal, Plastic
Shelf Life:
2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
4K Medical Endoscope Camera
Keyword:
4K Endoscope System With Light Source
Properties:
Surgical Instruments
Power:
AC110V-240V
Image Sensor:
1/1.8" SONY CMOS
Resolution:
4K
Video Output:
HDMI/SDI/CVBS
SNR(Signal Noise Ratio):
<45db
AWB:
Support
Freeze:
Support
Highlight:

ultra hd endoscope camera

,

surgical camera endoscope

,

surgical endoscope camera

Product Description
Product Parameters
Item No.
TU-15LSH1A (4K Carema)
System Parameters
Input Interface
4K
Output Interface
HDMI/SDI/CVBS/VGA
Keypad Control
Control the motherboard menu and shortcut keys through RX/TX
Power
AC110V~240V
Built-in Light Source Efficial Power
80W
Shortcut Key Function
Freeze/white balance/video/photograph/digital zoom
SNR(Signal Noise Ratio)
<45db
Working Environment
-10℃~60℃
Product Size
L390*W266*H425mm
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
3864(H) × 2192(V)Approx. 8.46M pixels
Resolution
SDI 4K
D-ZOOM
0-8x
Brightness
1-30 steps
Lens Mode
Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~60℃
Products Description
Product composition:

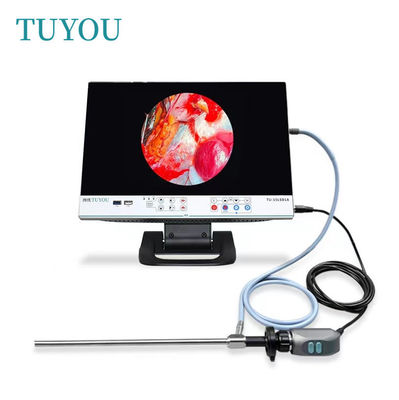

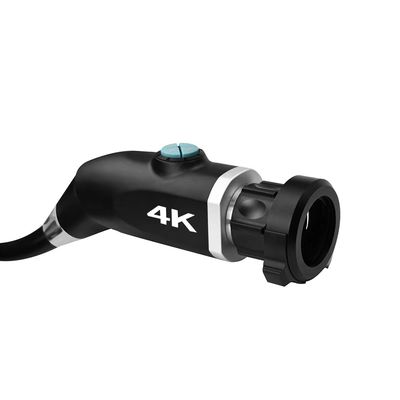

1.Endoscope imaging system consists of camera control system, handle camera,LED light source and optical camera adapter; ( Camera adapter is recommend part)
2.Two colors of machine stand is available;
3.Trolly cart is recommend product.
**Flexible and rigid combined camera system is on going.

Product Features:

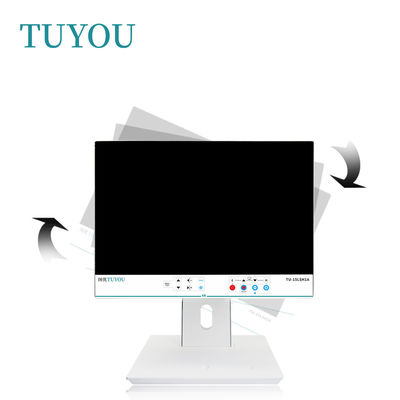

1. 15.6 inch medical grade monitor can 90 degree rotate;
2. Comes with 15.6-inch display screen for real-time viewing;
3. One-key freeze, one-key white balance, one-key zoom in and out;
4. 4K UHD resolution;
5. Light source brightness up/down;
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 0
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 1
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 2
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 3
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 4
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 5
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 6
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 7
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 8
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 9
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 10
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 11
Customer Feedback
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 12
Company Profile
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 13
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 14
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 15
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 16


Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 17
Certifications
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 18
Packing & Delivery
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 19
4K Ultra HD Medical Grade Monitor Endoscope Camera with Optic Fiber Light Source Packaging Standard Carton Box 1 Set/Carton box
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 20
High SNR Surgical Instruments 4K Ultra HD Endoscope Camera with Optic Fiber Light Source 21
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
