Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source

Name: Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source
Brand: TUYOU
SKU: TU-32LSD1A
Price: 6 USD
Availability: InStock
Rating: 5 (144 reviews)

Brand Name:	TUYOU
Model Number:	TU-32LSD1A
Price:	$6,550.00 - $7,450.00/units

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Power Source:

Electric

Warranty:

2 Years

After-sale Service:

Online Technical Support

Material:

Metal, Plastic, Steel

Shelf Life:

2 Years

Quality Certification:

CE,FCC,ISO13485

Instrument Classification:

Class I

Safety Standard:

None

Product Name:

4K Medical Endoscope Camera

Application:

Laparoscopy/gynecology/Urology/ENT Surgery Etc.

Display:

32 Inch

Image Sensor:

1/1.8" SONY CMOS

Input Interface:

SDI 4K 60fps

Output Interface:

HDMI/SDI

U Disk:

Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos

Camera SNR(Signal Noise Ratio):

More Than 42Db(AGC Off)

Power Output:

DC24V 9.2A

Function:

Video Record

Highlight:

laparoscopy 4k endoscope camera

laparoscopy endoscope camera 4k

led light source 4k endoscope camera

Product Description

Product Parameters

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 0

All In One Endoscope Camera System

It comes with:

1. 32 inches medical grade monitor;

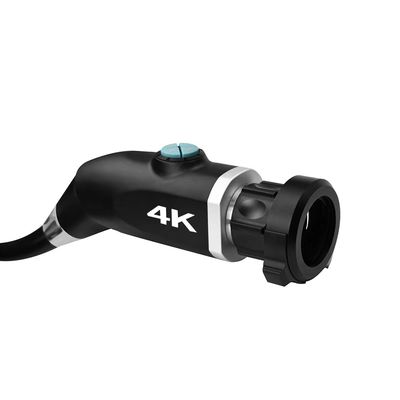

2. 4K camera system with 4K coupler;

3. 80W LED light source;

4. Record and playback function.

System Parameters
Input Interface	SDI 4K 60FPS
Output Interface	HDMI/SDI
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
U Disk	U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function	Freeze/White Balance/Video/Photo/Digital Zoom
Maximum Resolution	4096*2160@60H
Noise	<45db

Display Parameters
Image Sensor	1/1.8” CMOS
Effective Pixels	4K pixels
Image size (horizontal x vertical)	3840*2160P
Scan System	Progressive scan
Mode selection	E.N.T/LAPAROSCOPE/CYSTOSCOPE/URETEROSCOPE/ARTHROSCOPY/DISKOSCOPE/FIBERSCOPE/PRESET
Language	Chinese, English, Japanese, Korean, Russian, Arabic and others

Light Source Parameters
Light Type	LED
Effective Optical Power	80W
Illuminance	400W LUX
Color Temperature	5700K +/-500K
Brightness Adjustment	Support
Light Emitting Area (mm²)	7.7

Products Description

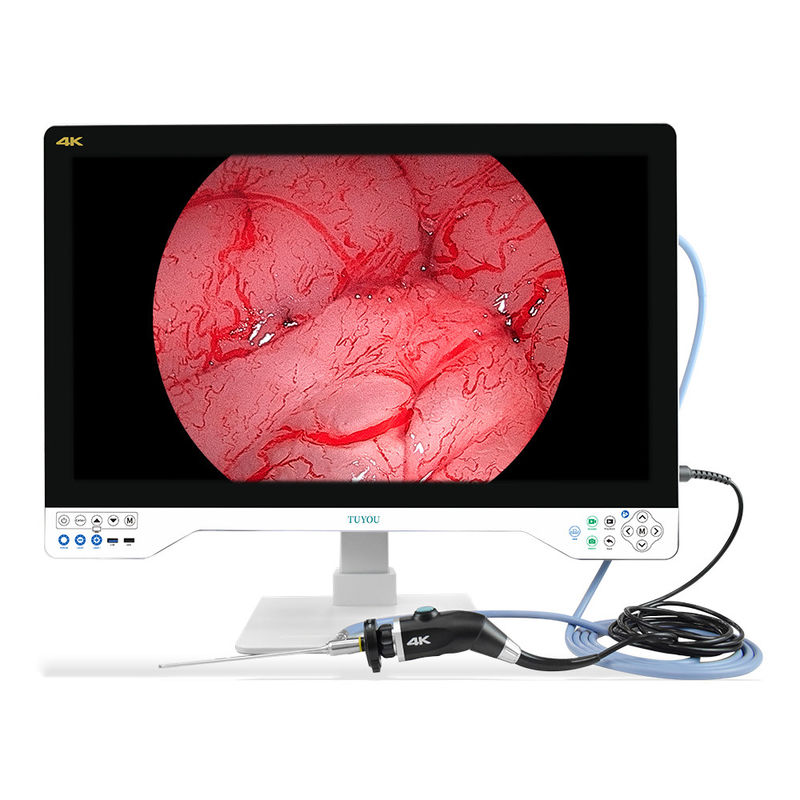

32" All In One Integrated Video Record LED Light Source Laparoscopy 4K Endoscope Camera

● Medical grade 32 inch 4K high-definition display screen,multi-output interface can connect to an external monitor;
● Built-in 2 USB video storage;
● Built-in LED cold light source;

● Customizable camera head;
● Multi-angle, adjustable at will;

● 15.6/24/27/32 inch is available;

● Normal color is White, if you need black color, please communicate with salesman.

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 1

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 2

Black color surface

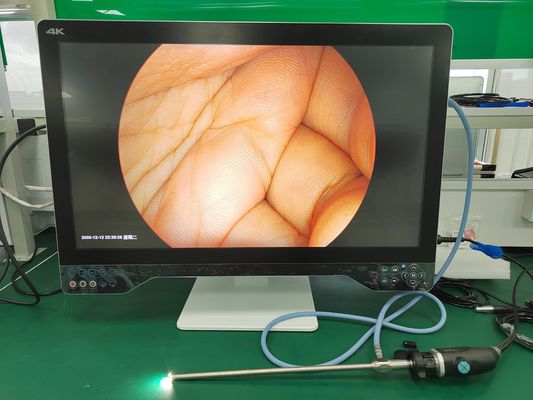

32 inches medical grade surgical LCD monitor shows real-time and ultra-high-resolution image.

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 3

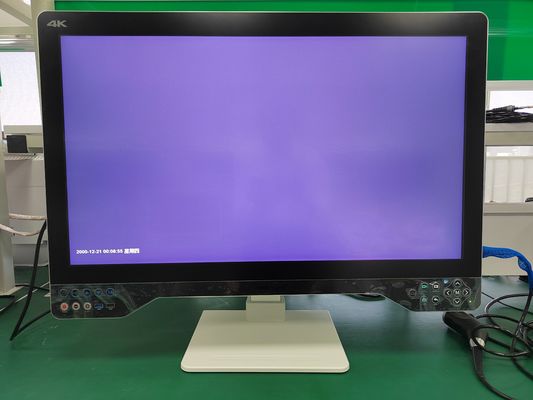

White color surface

User-friendly menu button and ultra-thin monitor

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 4

Playback function

Surgeons can even record surgical video in 32 GB USB storage to make it as a typical case or send it to patients' relatives.

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 5

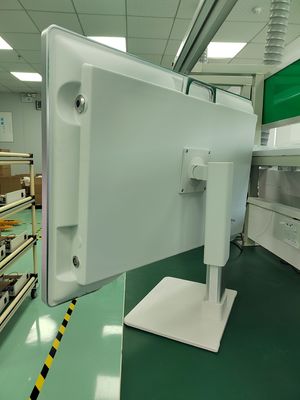

Angle adjustable & Light weight

At present, most of the endoscope camera system are traditional designs, the endoscope tower is too heavy and expensive for
freight, we developed and researched its ultra-thin body for convenient use and cost-saving.

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 6

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 7

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 8

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 9

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 10

Customer Feedback

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 11

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 12

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 13

Company Profile

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 14

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications,providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions.Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 15

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 16

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 17

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 18

Certifications

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 19

Packing & Delivery

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 20

32" All In One Integrated Video Record LED Light Source Laparoscopy 4K Endoscope Camera Standard Carton Box 1 Set/Carton box

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 21

Portable Laparoscopy 4K Endoscope Camera with U Disk Recording and LED Light Source 22

FAQ

1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
