Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-Y4HDSC
Payment & Shipping Terms
Price: $499.00 - $650.00/units
Packaging Details: Standard carton with foam
1Set/Carton Box
Supply Ability: 500 Unit/Units per Week Full HD 1080P Endoscopy Video Processor for Rigid ENT Endoscope
Power Source: |
Electric |
Warranty: |
2 Years |
After-sale Service: |
Onsite Training |
Material: |
Metal, Plastic |
Shelf Life: |
1 Year |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class I |
Safety Standard: |
None |
Product Name: |
Endoscopy Video Processor |
Image Sensor: |
1/1.8" Or 1/2.8" Sony CMOS |
Output Resolution: |
1080P(60fps) |
Power Supply: |
DC12V ±10%<1.7W |
Brightness Adjustment: |
Support 1-30 Steps |
Properties: |
Surgical Instruments |
Color(AWB): |
Preset/Purshing |
FREEZE: |
The Picture Freezes |
Endoscope Mode: |
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT |
Language: |
Multi Language |
Power Source: |
Electric |
Warranty: |
2 Years |
After-sale Service: |
Onsite Training |
Material: |
Metal, Plastic |
Shelf Life: |
1 Year |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class I |
Safety Standard: |
None |
Product Name: |
Endoscopy Video Processor |
Image Sensor: |
1/1.8" Or 1/2.8" Sony CMOS |
Output Resolution: |
1080P(60fps) |
Power Supply: |
DC12V ±10%<1.7W |
Brightness Adjustment: |
Support 1-30 Steps |
Properties: |
Surgical Instruments |
Color(AWB): |
Preset/Purshing |
FREEZE: |
The Picture Freezes |
Endoscope Mode: |
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT |
Language: |
Multi Language |
Item No. | TU-Y4HDSC |
Parameters | ||
Resolution | SDI:1080P@30fps,1080P@60fps | |

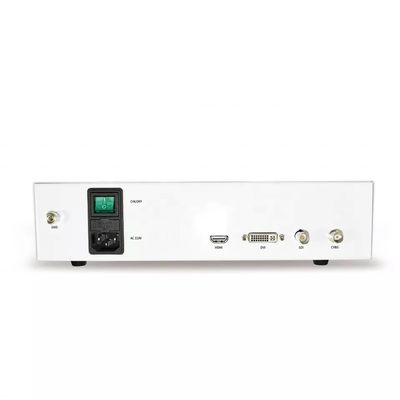

Output | DVI+HDMI+SDI+CVBS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
SDI | HD-SDI/EX-SDI switchable | |
IMAGE SENSOR | 1/2.8” or 1/1.8" CMOS(IMX385) | |
BRIGHTNESS | 1-20 steps | |
SHARPNESS | 1-20 steps | |
BACKLIGHT | OFF/BLC/HLC/WDR | |
AWB | Preset/Purshing | |
FREZZ | SUPPORT | |
D-ZOOM | Image zoom in /out | |
Endoscope mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT | |
Working temperature | -10℃-+75 ℃ | |
LANGUAGE | CHINESE/ENGLISH....etc | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Power Supply | DC12V ±10%<1.7W | |
Power consumption | 1 .2 W（≤100mA ） | |
Working Current | 140mA±10mA | |
Processor Size | 2000x1700x170mm | |
Please Note | The optic endoscope is Recommend part. | |
Product Color | Black and Blue color is available. | |
