Home > products > Full HD Endoscope Camera System > Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen

Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen

Product Details

Place of Origin: Guangdong, China

Brand Name: TUYOU

Model Number: TV-LSD101B

Payment & Shipping Terms

Price: $1,540.00 - $1,850.00/units

Packaging Details: Medical ENT Endoscopy Camera HD Endoscopic Camera
Standard carton with foam
1Set/Carton Box

Supply Ability: 2000 Unit/Units per Month Medical ENT Endoscopy Camera HD Endoscopic Camera

Get Best Price
Highlight:

surgery endoscopy camera

,

medical endoscopy camera

,

medical hd endoscopic camera

Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Online Technical Support
Material:
Metal, Plastic
Shelf Life:
2 Years, 2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
Medical Endoscope Camera
Camera:
1/1.8" SONY CMOS
Image Size:
1920X1080
Light Source:
80W LED Light Source
Application:
Medical Examination & Surgery
Output Interface:
HDMI/DVI/VGA/SDI/CVBS
Monitor:
With 6'' LCD Screen
U Disk:
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos
AWB:
Support
Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Online Technical Support
Material:
Metal, Plastic
Shelf Life:
2 Years, 2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
Medical Endoscope Camera
Camera:
1/1.8" SONY CMOS
Image Size:
1920X1080
Light Source:
80W LED Light Source
Application:
Medical Examination & Surgery
Output Interface:
HDMI/DVI/VGA/SDI/CVBS
Monitor:
With 6'' LCD Screen
U Disk:
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos
AWB:
Support
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen
Product Parameters
Item No.
TV-LSD101B (1080P Carema)
System Parameters
Input Interface
SDI 1080P 60FPS
Output Interface
HDMI/DVI/VGA/LVDS/SDI/CVBS
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Noise
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
4.3KG
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels
Resolution
SDI 1080P 60fps
Min-illumination
Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
D-ZOOM
Image zoom 1-8X
Color
RED/GREEN/YELLOW/BLUE
Brightness
1-30 steps
Sharpness
1-40 steps
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <1.7W
Working Current
140mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
80W
Illuminance
400W LUX
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8
Products Description

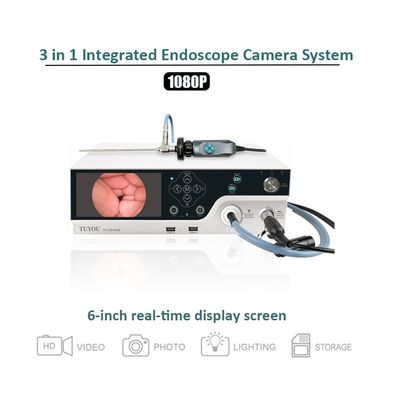

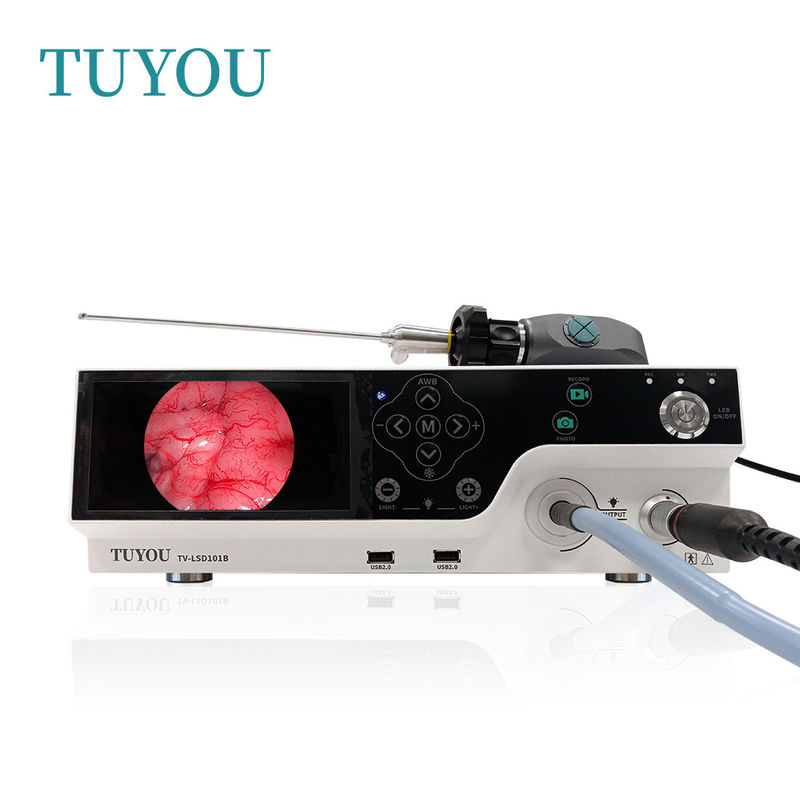

Medical ENT Endoscopy Camera/ HD Endoscopic Camera

Product Composition Introduction:

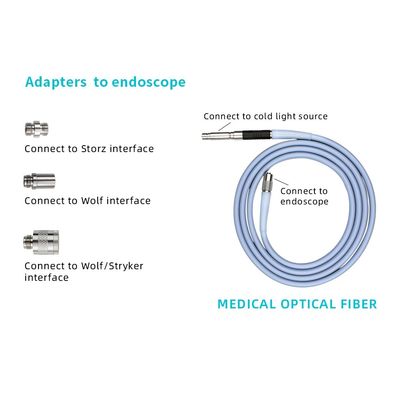

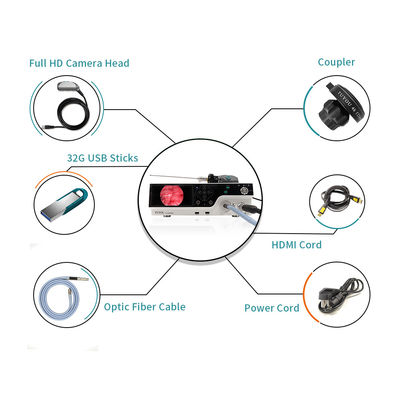

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).


● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;

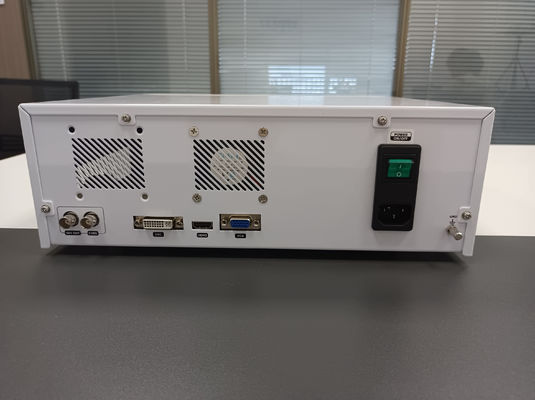

● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

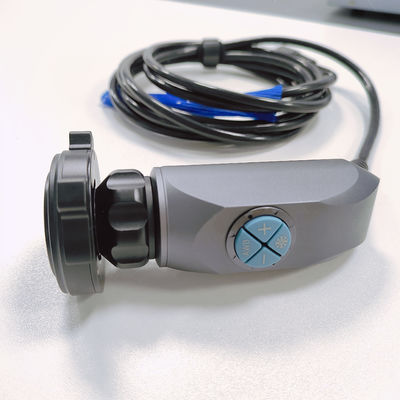

Handle Camera: Two type of handle camera for you choose.
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 0
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 1
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 2
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 3
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 4
Two types of handle camera can be choiced
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 5
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 6
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 7
Customer Feedback
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 8
Company Profile
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 9

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 10
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 11
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 12
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 13
Certifications
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 14
Packing & Delivery
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 15
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 16
Medical Examination Surgery Endoscopy Camera HD Endoscopic Camera with 6'' LCD Screen 17
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
