Full HD Endoscope Camera System
Created with Pixso. Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD

Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD

Brand Name: TUYOU
Model Number: TU-LSD10KB
Price: $1,790.00/units 1-9 units
Detail Information
Place of Origin:
Guangdong, China
Properties:
Surgery
Type:
Endoscope
Instrument Classification:
Class I
Warranty:
2 Years
After-sale Service:
Online Technical Support
Product Name:
Endoscope Camera
Input Interface:
SDI 1080P 60FPS
Output Interface:
HDMI/DVI/VGA/LVDS/SDI/CVBS
U Disk:
U Disk USB2.0/USB3.0 (Max. 32GB)
SNR:
45 DB
Image Sensor:
SONY CMOS
Effective Pixels:
1845(H) 1097(V) Approx. 2.13M Pixels
Rated Power:
80 Watts
Color Temperature:
5800-6500K
Language:
Chinese, English, Japanese, Korean And Other Languages
Packaging Details:
Full HD Endoscopy Unit Endoscope Camera System with Optic Light Source for ENT Urology Laparoscopic Surgery

Standard carton with foam
1 Set/Carton Box
Supply Ability:
2000 Unit/Units per Month
Highlight:

1080p camera endoscope

,

1080p endoscope camera system

,

record function camera endoscope

Product Description
Product Parameters
Product Item No.
TV-LSD10KB (1080P Carema)
System Parameters
Input Interface
SDI 1080P 60FPS

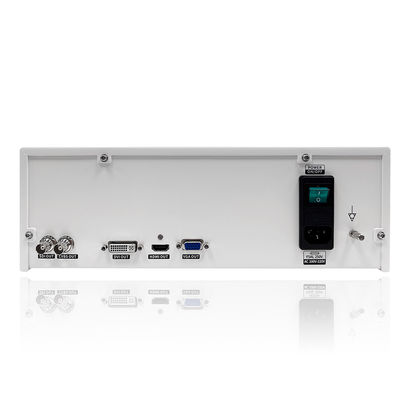

Output Interface
HDMI/DVI/VGA/LVDS/SDI/CVBS
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
Two USB2.0(up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Noise
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
4.3KG
Camera Parameters
Image Sensor
1/1.8” SONY CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels
Resolution
SDI 1080P 60fps
FREEZE
Support
AWB
Support
Min-illumination
Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
D-ZOOM
Image zoom 1-8X
Color
RED/GREEN/YELLOW/BLUE
Brightness
1-30 steps
Sharpness
1-40 steps
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <1.7W
Working Current
140mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
100W
Illuminance
400W LUX
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8
Products Description
Full HD Endoscopy Unit Endoscope Camera System with Optic Light Source for ENT Urology Laparoscopic Surgery

Product Composition Introduction and features:

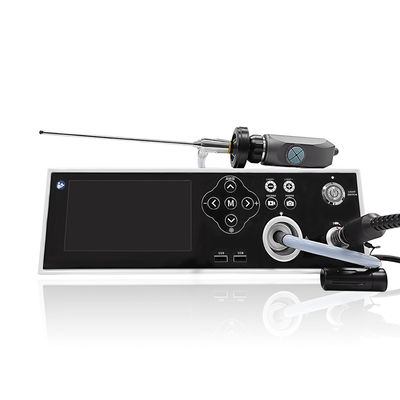

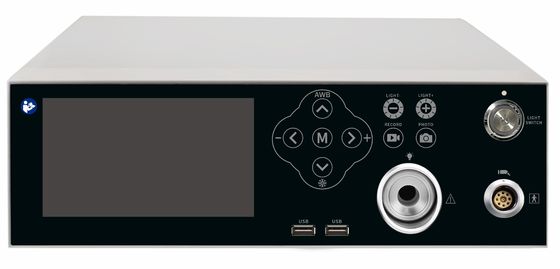

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).

1. Medical Endoscope Camera adapts latest technology provides sharper details with low delay and high color accuracy;
2. When AWB uses information from the scene and calibrates how white object should appear under different light sources and condition, doctors can achieve actual color rendition and accurate results;
3. Different color's settings, multilingual, freeze and zoom in/out etc., these multi-functions can always meet doctor's need.
4. Brightness memory function, the brightness of the light source is not initialized with the shutdown, and automatically
memorizes the brightness before shutdown after the startup
5. Built-in 60 Watts Cold Light Source works great with the high sensitivity of the camera sensor.

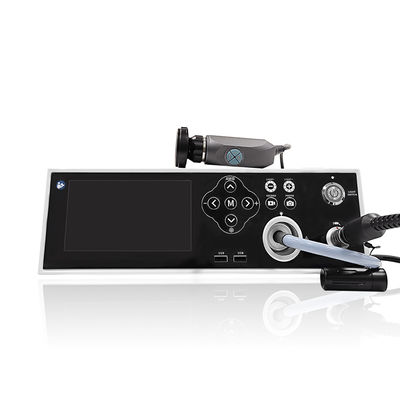

Camera head: Three types for your choice.
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 0
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 1
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 2
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 3
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 4
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 5
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 6
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 7
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 8
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 9
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 10
Customer Feedback
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 11
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 12
Company Profile
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 13
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 14
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 15
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 16
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 17
Certifications
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 18
Packing & Delivery
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 19
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 20
Class I Endoscope Camera System With Optic Light Source and Record Function 1080P Full HD 21
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
