Home > products > Full HD Endoscope Camera System > U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera

Product Details

Place of Origin: Guangdong, China

Brand Name: TUYOU

Model Number: TU-27LSD2B

Payment & Shipping Terms

Price: $2,799.00 - $3,750.00/units

Packaging Details: 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera
Standard carton with foam
1Set/Carton Box

Supply Ability: 2000 Unit/Units per Month 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysterosc

Get Best Price
Highlight:

1080p camera endoscope

,

1080p endoscope camera

,

medical camera endoscope

Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Online Technical Support
Material:
Metal, Plastic, Steel
Shelf Life:
2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
4 In 1 Hysteroscope Endoscope Camera
Application:
Laparoscopy/gynecology/Urology/ENT Surgery Etc.
Display:
27 Inch
Power:
AC110V-250V
Image Sensor:
1/2" SONY CMOS
Input Interface:
SDI 1080P 60fps
Output Interface:
HDMI/SDI/CVBS/VGA/DVI
Camera SNR(Signal Noise Ratio):
More Than 42Db(AGC Off)
U Disk:
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos
AWB:
Support
Power Source:
Electric
Warranty:
2 Years
After-sale Service:
Online Technical Support
Material:
Metal, Plastic, Steel
Shelf Life:
2 Years
Quality Certification:
CE,FCC
Instrument Classification:
Class II
Safety Standard:
None
Product Name:
4 In 1 Hysteroscope Endoscope Camera
Application:
Laparoscopy/gynecology/Urology/ENT Surgery Etc.
Display:
27 Inch
Power:
AC110V-250V
Image Sensor:
1/2" SONY CMOS
Input Interface:
SDI 1080P 60fps
Output Interface:
HDMI/SDI/CVBS/VGA/DVI
Camera SNR(Signal Noise Ratio):
More Than 42Db(AGC Off)
U Disk:
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos
AWB:
Support
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera
Product Parameters
Item No.
TU-27LSD2B (1080P Carema)
System Parameters
Input Interface
SDI 1080P 60FPS
Output Interface
HDMI/SDI/CVBS/VGA/DVI
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Fixing bracket
Support
Maximum Resolution
4096*2160@60H
Noise
<45db
Working Environment
-10℃~60℃
Display Size
L 660mm W 420mm H 90mm
Net Weight
12.4KG
Camera Parameters
Model
TU-HS30_4R
Image Sensor
1/2” CMOS
Effective Pixels
2 million pixels
Image size (horizontal x vertical)
1845(H) × 1097(V)
Scan System
Progressive scan
Signal output
SDI, CVBS, DVI, HDMI, VGA video signal
Features
Built-in video workstation with USB storage, 27-inch monitor
Mode selection
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Resolution
SDI 1080P 60fps
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <3W
Working Current
250mA±10mA
Light Source Parameters
Light Type
LED
Effective
100W
Illuminance
400W LUX
Color Temperature
5700K +/-500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
7.7
Products Description
Product Composition Introduction:

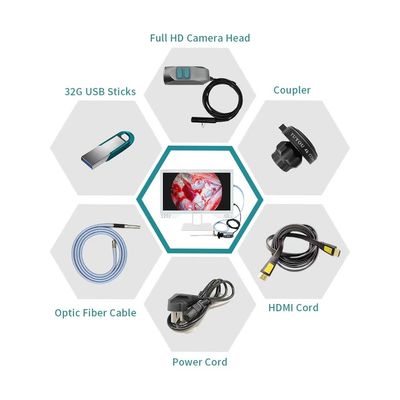

The endoscope integrated imaging system consists of a 27-inch Display, Display Holder(the display also can be fix on endoscope cart, the cart is OPTIONAL part), Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter (Optical Interface).


TU-27LSD2B Video Light Source Video Recorder Features:

● 27 inch 1080P high-definition display screen;
Two built-in USB full HD video storage, also can be connected to an external monitor
● Built-in LED imported cold light source;
● One-key freeze, one-key white balance, one-key zoom in and out;
● One-key photo/video function;

● Multi-angle height, adjustable at will;

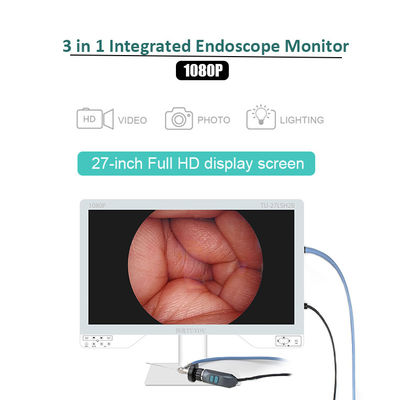

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 0

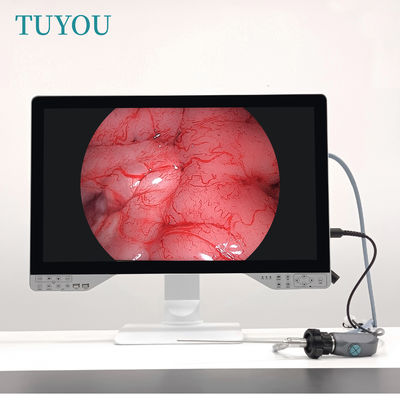

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 1

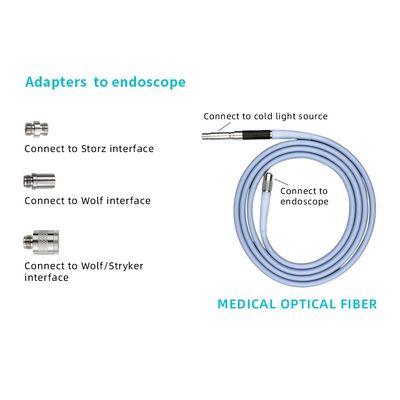

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 2

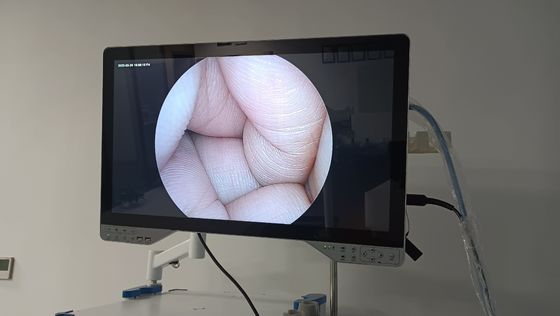

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 3

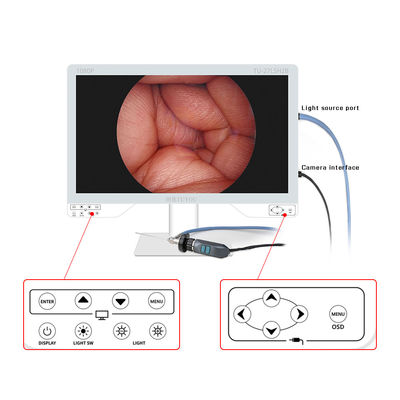

U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 4
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 5
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 6
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 7
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 8
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 9
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 10
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 11
Company Profile
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 12

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 13
Certifications
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 14
Packing & Delivery
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 15
27inch 1080P Full HD 4 in 1 Medical Arthroscope System for Packaging Standard Carton Box 1 Set/Carton box
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 16
U Disk 27inch 1080P Full HD 4 in 1 Medical Arthroscope System Hysteroscope Endoscope Camera 17
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
