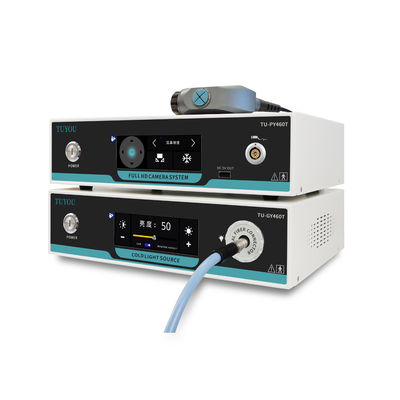

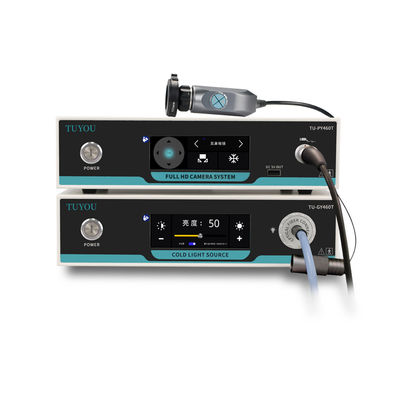

Light Source and Color Enhancement Touch Screen Endoscopic Camera System for Medical

Name: Light Source and Color Enhancement Touch Screen Endoscopic Camera System for Medical
Brand: TUYOU
SKU: TU-PY460T+TU-GY460T
Price: 595.00 USD
Availability: InStock
Rating: 4.7 (119 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: TUYOU

Model Number: TU-PY460T+TU-GY460T

Payment & Shipping Terms

Price: $595.00 - $1,385.00/units

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                medical endoscopy camera system, medical full hd endoscope camera system, ent endoscopy camera system


Properties:	Diagnosis & Injection	Product Name:	FHD Endoscope Camera System
Sensor:	1/2.8" SONY CMOS	Effective Pixels:	1945(H) *1109(V)Approx. 2.16M Pixels
Resolution:	1080P (60fps)	Application:	Laparoscope/ENT/Arthroscope
Light Source:	LED 100W	SNR:	More Than 42 DB
Language:	Multi Language	Color(AWB):	One Key Auto White Balance
Working Current:	1.2W(≤100mA )

Properties:	Diagnosis & Injection
Product Name:	FHD Endoscope Camera System
Sensor:	1/2.8" SONY CMOS
Effective Pixels:	1945(H) *1109(V)Approx. 2.16M Pixels
Resolution:	1080P (60fps)
Application:	Laparoscope/ENT/Arthroscope
Light Source:	LED 100W
SNR:	More Than 42 DB
Language:	Multi Language
Color(AWB):	One Key Auto White Balance
Working Current:	1.2W(≤100mA )

Light Source and Color Enhancement Touch Screen Endoscopic Camera System for Medical

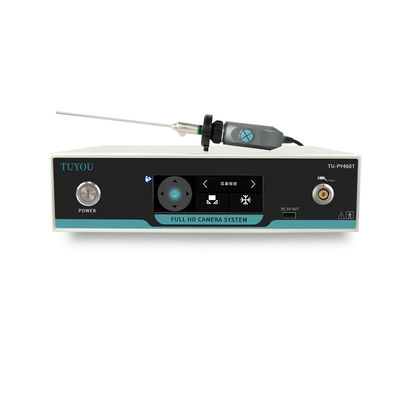

Product Parameters

Item No.

TU-PY460T+ TU-GY460T

Parameters
Resolution	SDI:1080P@30fps,1080P@60fps
Output	DVI+HDMI+SDI+CVBS
Effective Pixels	1845(H) × 1097(V)Approx. 2.13M pixels
SDI	HD-SDI/EX-SDI switchable
IMAGE SENSOR	1/2.8” CMOS
BRIGHTNESS	1-20 steps
SHARPNESS	1-20 steps
BACKLIGHT	OFF/BLC/HLC/WDR
AWB	Preset/Purshing
FREZZ	SUPPORT
D-ZOOM	Image zoom in /out
Endoscope mode	PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
Working temperature	-10℃-+75 ℃
LANGUAGE	CHINESE/ENGLISH....etc
Power Supply	DC12V ±10%<1.7W
Power consumption	1 .2 W（≤100mA ）
Working Current	140mA±10mA
Processor Size	2000x1700x170mm
Please Note	The optic endoscope is Recommend part.

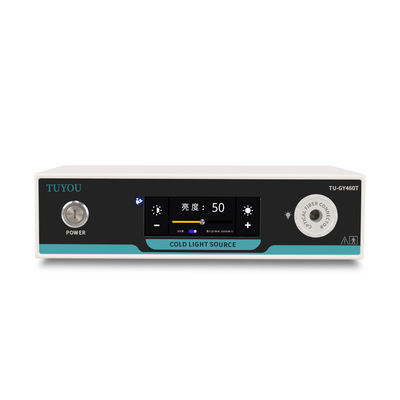

Endoscope LED Light Source Parameters
Light Type	LED
Light Source Rated Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support 0-100
Light Emitting Area (m²)	7.7
Color Rendering Index CRI	80/92
Light Source Maximum Current	13A
System Power	220V
Operating Temperature	-10℃ to 60℃
Lifetime	30000h
Size	L336W330H116mm

Products Description

Factory Price Full HD Medical Endoscopic Camera with Light Source for ENT Laparoscopic Urology Surgery

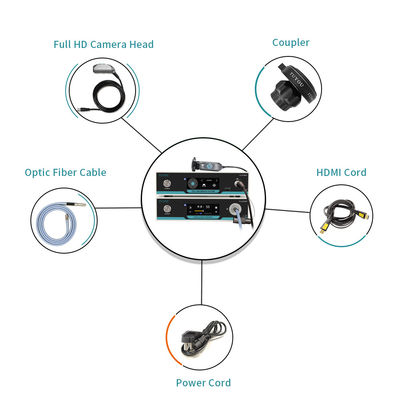

Product Composition:

Endoscopy camera processor is widely used in hospital medical system, college teaching demonstration, clinic diagnosis analysis, and animal pet veterinary medical diagnosis. Compatible with all kinds of rigid endoscope(Storz/Wolf and so on).
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function.

TU-PY460T + TU-GY460T Features:

● Touch screen 4.6 inchs;

● 1/2.8" CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;

● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fiber bronchoscope, fiber ureteroscope.

● 100W medical grade LED light source.

Customer Feedback

Company Profile

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Certifications

Packing & Delivery

Factory Price Full HD Medical Endoscopic Camera with Light Source for ENT Laparoscopic Urology Surgery

Standard carton with foam

1 Set/Carton Box

FAQ

1.Who are we?

We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers.

2.How can we guarantee quality?

We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment.

3.Why should you buy from us not from other suppliers?

Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services.

4.What is the warranty?

The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period .

5.What's the payment term?

We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
