Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-D1600T
Payment & Shipping Terms
Price: $980.00 - $1,200.00/units
Properties: |
Diagnosis & Sugery |
Product Name: |

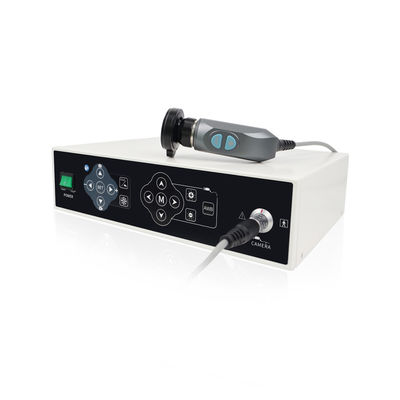

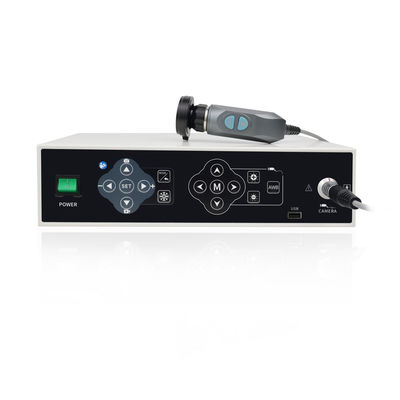

Quadruple Display Medical Imaging Endoscope Camera |
Sensor: |
1/2.8" SONY CMOS |
Effective Pixels: |
1945(H) *1109(V)Approx. 2.16M Pixels |
Resolution: |
1080P (60fps) |
SNR: |
More Than 42 DB |
Language: |
Multi Language |
Working Current: |
1.2W(≤100mA ) |
Color(AWB): |
One Key Auto White Balance |
MIRROR/FLIP: |
OK |
OEM: |
Accept OEM Service |
Properties: |
Diagnosis & Sugery |
Product Name: |
Quadruple Display Medical Imaging Endoscope Camera |
Sensor: |
1/2.8" SONY CMOS |
Effective Pixels: |
1945(H) *1109(V)Approx. 2.16M Pixels |
Resolution: |
1080P (60fps) |
SNR: |
More Than 42 DB |
Language: |
Multi Language |
Working Current: |
1.2W(≤100mA ) |
Color(AWB): |
One Key Auto White Balance |
MIRROR/FLIP: |
OK |
OEM: |
Accept OEM Service |
Item No. | TU-D1600T |
Parameters | ||
Resolution | SDI:1080P@30fps,1080P@60fps | |
Output | HDMI | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
SDI | HD-SDI/EX-SDI switchable | |
IMAGE SENSOR | 1/2.8” SONY CMOS | |
BRIGHTNESS | 1-20 steps | |
SHARPNESS | 1-20 steps | |
BACKLIGHT | OFF/BLC/HLC/WDR | |
AWB | Preset/Purshing | |
FREZZ | SUPPORT | |
D-ZOOM | Image zoom in /out | |
Endoscope mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT | |
Working temperature | -10℃-+75 ℃ | |
LANGUAGE | CHINESE/ENGLISH....etc | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Power Supply | DC12V ±10%<1.7W | |
Power consumption | 1 .2 W（≤100mA ） | |
Working Current | 140mA±10mA | |
Please Note | The optic endoscope and LED light source is Recommend part. | |
Product Color | Black and Blue color is available. | |
