1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function

Name: 1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function
Brand: TUYOU
SKU: TU-D1600T
Price: 980.00 USD
Availability: InStock
Rating: 4.5 (115 reviews)

Brand Name:	TUYOU
Model Number:	TU-D1600T
Price:	$980.00 - $1,200.00/units

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Properties:

Diagnosis & Injection

Product Name:

Endoscopy Camera Full HD

Sensor:

1/2.8" SONY CMOS

Effective Pixels:

1945(H) *1109(V)Approx. 2.16M Pixels

Resolution:

1080P (60fps)

SNR:

More Than 42 DB

Language:

Multi Language

Working Current:

1.2W(≤100mA )

Color(AWB):

One Key Auto White Balance

MIRROR/FLIP:

Highlight:

full hd camera endoscope

1080p camera endoscope

1080p endoscope camera

Product Description

Product Parameters

Item No.

TU-D1600T

Parameters
Resolution	SDI:1080P@30fps,1080P@60fps
Output	HDMI
Effective Pixels	1845(H) × 1097(V)Approx. 2.13M pixels
SDI	HD-SDI/EX-SDI switchable
IMAGE SENSOR	1/2.8” SONY CMOS
BRIGHTNESS	1-20 steps
SHARPNESS	1-20 steps
BACKLIGHT	OFF/BLC/HLC/WDR
AWB	Preset/Purshing
FREZZ	SUPPORT
D-ZOOM	Image zoom in /out
Endoscope mode	PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
Working temperature	-10℃-+75 ℃
LANGUAGE	CHINESE/ENGLISH....etc
Color ADJ	User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250
Power Supply	DC12V ±10%<1.7W
Power consumption	1 .2 W(≤100mA )
Working Current	140mA±10mA
Please Note	The optic endoscope and LED light source is Recommend part.
Product Color	Black and Blue color is available.

Products Description

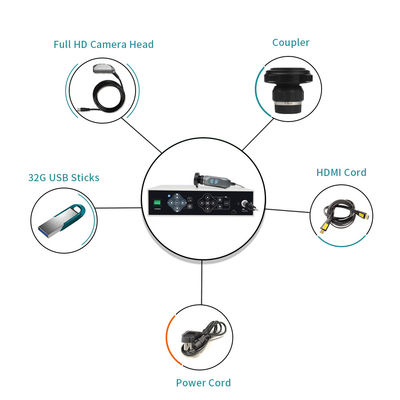

Product Composition:

Endoscopy camera processor is widely used in hospital medical system, college teaching demonstration, clinic diagnosis analysis, and animal pet veterinary medical diagnosis. Compatible with all kinds of rigid endoscope(Storz/Wolf and so on).
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function.

TU-D1600T Features:

● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;

● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 0

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 1

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 2

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 3

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 4

Customer Feedback

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 5

Company Profile

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 6

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 7

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 8

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 9

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Certifications

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 10

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 11

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 12

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 13

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 14

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 15

Packing & Delivery

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 16

Endoscope Camera Medical Imaging Equipment Full HD Endoscopy Camera for Medical Portable Endoscope Camera Packaging Standard Carton Box 1 Set/Carton box

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 17

1080P 60fps Diagnosis Injection Full HD Camera Endoscope System With Record Function 18

FAQ

1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
