| Brand Name: | TUYOU |
| Model Number: | TU-27LSD1A |
| MOQ: | 1 kit |
| Price: | $5,998.00 - $6,598.00/units |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
|
Item No.
|
TU-27LSD1A (4K Carema)
|
|
System Parameters
|
|
|
|
Input Interface
|
SDI 4K 60FPS
|
|
|
Output Interface
|
HDMI/SDI/CVBS
|
|
|
Keypad Control
|
Control the mainboard menu and shortcut keys through RX/TX
|
|
|
Power
|
AC110V~240V
|
|
|
U Disk
|
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
|
|
|
Shortcut Key Function
|
Freeze/White Balance/Video/Photo/Digital Zoom
|
|
|
Fixing bracket
|
Support
|
|
|
Maximum Resolution
|
4096*2160@60H
|
|
|
Noise
|
<45db
|
|
|
Working Environment
|
-10℃~60℃
|
|
|
Display Size
|
L 660mm W 420mm H 90mm
|
|
|
Net Weight
|
12.4KG
|
|
|
Display Parameters
|
|
|
|
Image Sensor
|
1/1.8” CMOS
|
|
|
Effective Pixels
|
4K pixels
|
|
|
Image size (horizontal x vertical)
|
3840*2160P
|
|
|
Scan System
|
Progressive scan
|
|
|
Signal output
|
SDI, CVBS, DVI, HDMI, VGA video signal
|
|
|
Features
|
Built-in video workstation with USB storage, 27-inch monitor
|
|
|
Mode selection
|
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
|
|
|
Resolution
|
SDI 4K 60fps
|
|
|
S/N Ratio (Signal to Noise Ratio)
|
More than 42Db(AGC off)
|
|
|
Language
|
Chinese, English, Japanese, Korean, Russian, Arabic and other languages
|
|
|
Working Environment
|
-30℃~70℃
|
|
|
Power(Max.) Supply
|
DC12V ±10% <3W
|
|
|
Working Current
|
250mA±10mA
|
|
|
Light Source Parameters
|
|
|
|
Light Type
|
LED
|
|
|
Effective Optical Power
|
80W
|
|
|
Illuminance
|
400W LUX
|
|
|
Color Temperature
|
5700K +/-500K
|
|
|
Brightness Adjustment
|
Support
|
|
|
Light Emitting Area (mm²)
|
7.7
|
|

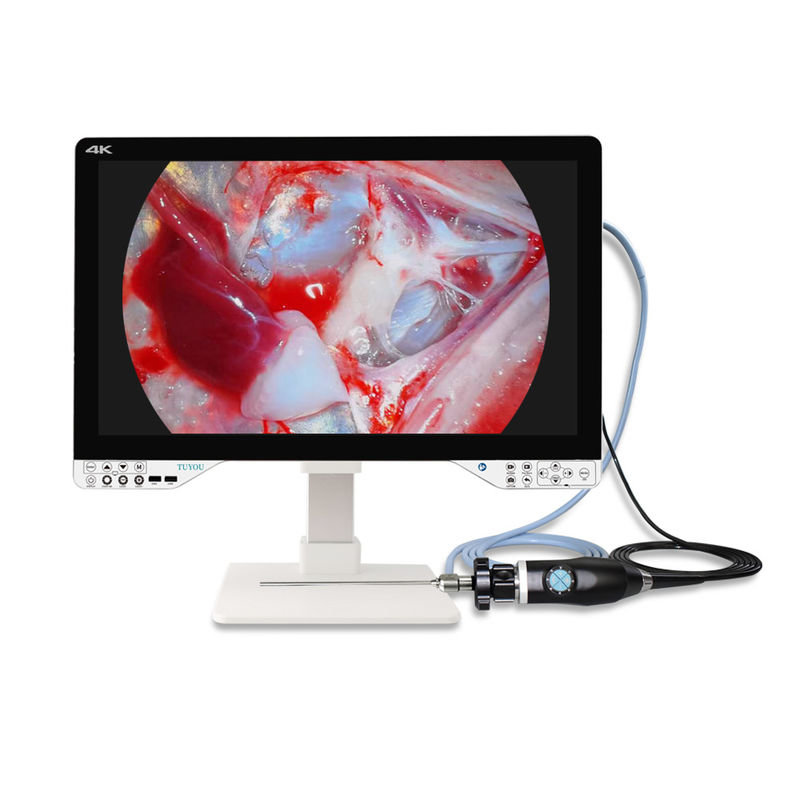

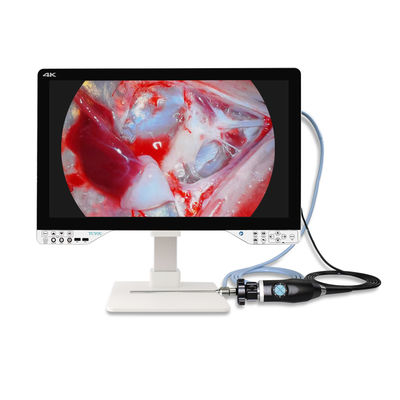

TU-27LSD1A Video Light Source Video Recorder Features:
● 27 inch 4K high-definition display screen;
● Two built-in USB full HD video storage, also can be connected to an external monitor；
● Built-in LED imported cold light source;
● One-key freeze, one-key white balance, one-key zoom in and out;
● One-key photo/video function;

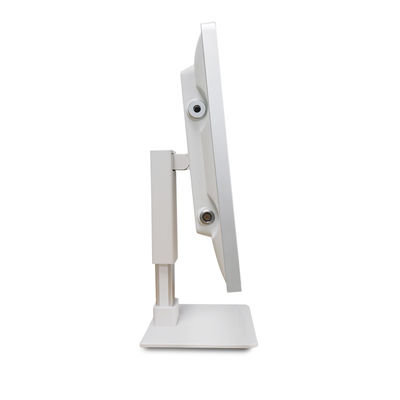

● Multi-angle height, adjustable at will.
Shenzhen Tuyou Medical Imaging Co., Ltd.
A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications,providing OEM/ODM services for a number of national well-known enterprises.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions.Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
