Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Full HD Endoscope Camera System
Created with Pixso. FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs
Name
  • Name
  • Name
  • Name
  • Name
  • Name

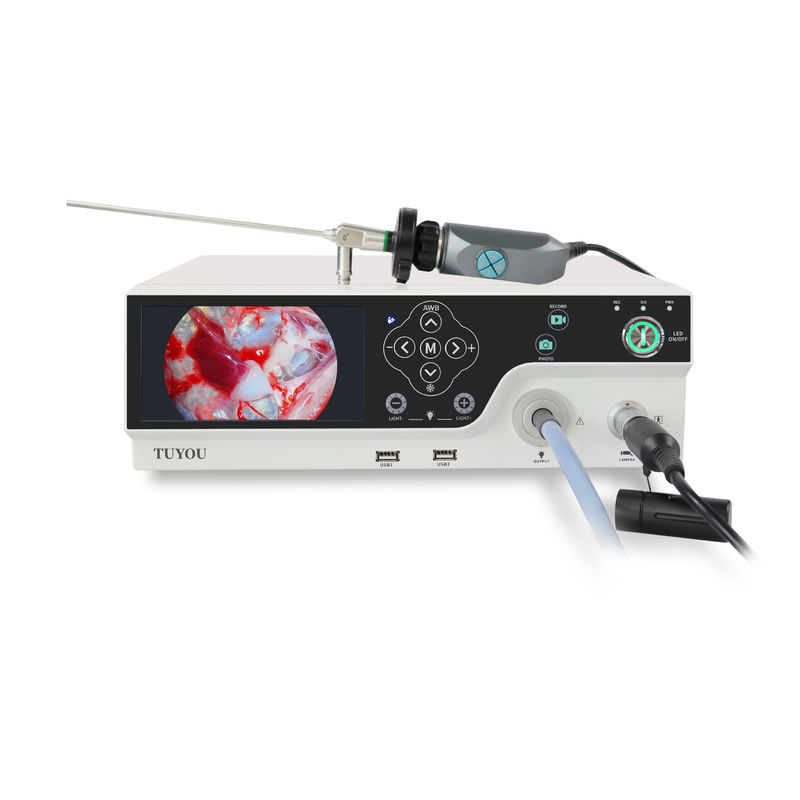

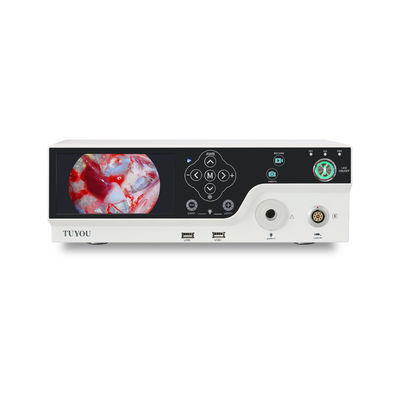

FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs

Brand Name: TUYOU
Model Number: TV-LSD101B
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
China
Image Sensor:
SONY CMOS
Output Resolution:
1080P(60fps)
Brightness Adjustment:
Support 1-20 Steps
Power Supply:
AC 100-240V, 50/60Hz
Shoutcut Key Function:
Freeze/digital Zoom/white Balance
Field Of View:
120 Degrees
Monitor:
24inch
U Disk:
U Disk USB2.0 (up To 32GB)
Output:
HDMI/SDI/VGA/CVBS/DVI
Snr:
＜45dB
Resolution:
1920x1080
Warranty:
2 Years
Color Temperature:
5700K +/-500K
Quality Certification:
CE ISO FCC
Quick Function:
Freeze, Zoom In And Out, White Balance
Product Description

Product descriptions from the supplier




Overview
Video Description


Product Parameters
Product Item No.
TV-LSD101B (1080P Carema)
System Parameters
Input Interface
SDI 1080P 60FPS

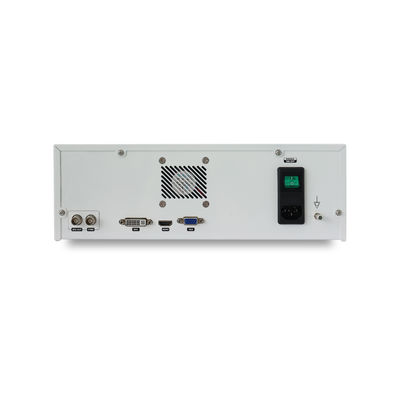

Output Interface
HDMI/DVI/VGA/LVDS/SDI/CVBS
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Noise
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
4.3KG
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels
Resolution
SDI 1080P 60fps
FREEZE
Support
AWB
Support
Min-illumination
Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
D-ZOOM
Image zoom 1-8X
Color
RED/GREEN/YELLOW/BLUE
Brightness
1-30 steps
Sharpness
1-40 steps
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <1.7W
Working Current
140mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
100W
Illuminance
400W LUX
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8
Products Description
All in one Light Source USB Record Medical Endoscope Camera System 1080P

Product Composition Introduction:

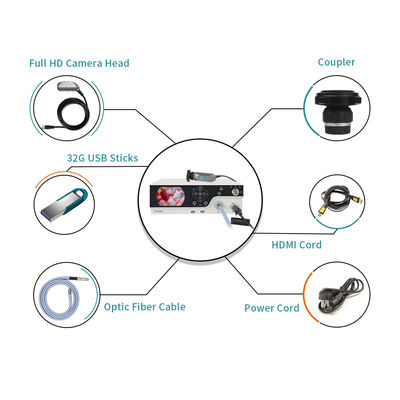

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).

● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

Handle Camera: Two type of handle camera for you choose.
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 0
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 1
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 2
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 3
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 4
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 5
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 6
FHD Endoscopic Camera System with Build in LED Light Source and USB Storage Outputs 7
