Medical Endoscope Camera
Created with Pixso. TUYOU Medical Full HD Laparoscopy for Rigid Endoscop

TUYOU Medical Full HD Laparoscopy for Rigid Endoscop

Brand Name: TUYOU
Model Number: TV-D101B+TV-LS101G
Detail Information
Place of Origin:
China
Certification:
CE FDA ISO13485
Product Description

Product descriptions from the supplier




Overview
Video Description


Product Parameters
Item No.
TV-D101B
System Parameters
Input Interface
SDI 1080P
Video Output
HDMI/DVI/VGA/SDI/CVBS
Keypad Control
Control the motherboard menu and shortcut keys through RX/TX
Power
AC110V~240V
Video Recording
Build-In USB*2 port
Shortcut Key Function
Freeze/white balance/video/photograph or digital zoom in/out
Scanning System
Progressive scanning
SNR(Signal Noise Ratio)
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
3.9KG
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels,
D-ZOOM
0-8x
Brightness
1-30 steps
Lens Mode
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~60℃
Power(Max.) Supply
DC12V ±10%<3W
Working Current
140mA±10mA
LED Light Source Parameters
Light Type
LED
Light Source Rated Power
120W
Illuminance
400W LUX
Color Temperature
5800-6500K
Brightness Adjustment
Support 0-100
Light Emitting Area (m²)
7.7
Color Rendering Index C RI
80/92
Light Source Maximum Current
13A
System Power
220V
Lifetime
30000h
Size
L336*W330*H116mm
Weight
5.5KG
Medical Grade Monitor Parameters
Monitor Size
27/32 inches optional
Light Source Rated Power
Accurate color rendering
System Power
DC 24V
Size
L657*W432*H78mm
Weight
8.4KG
Products Description

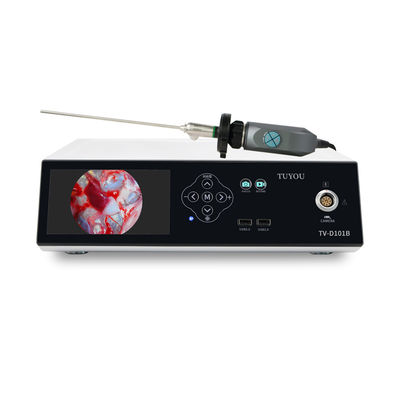

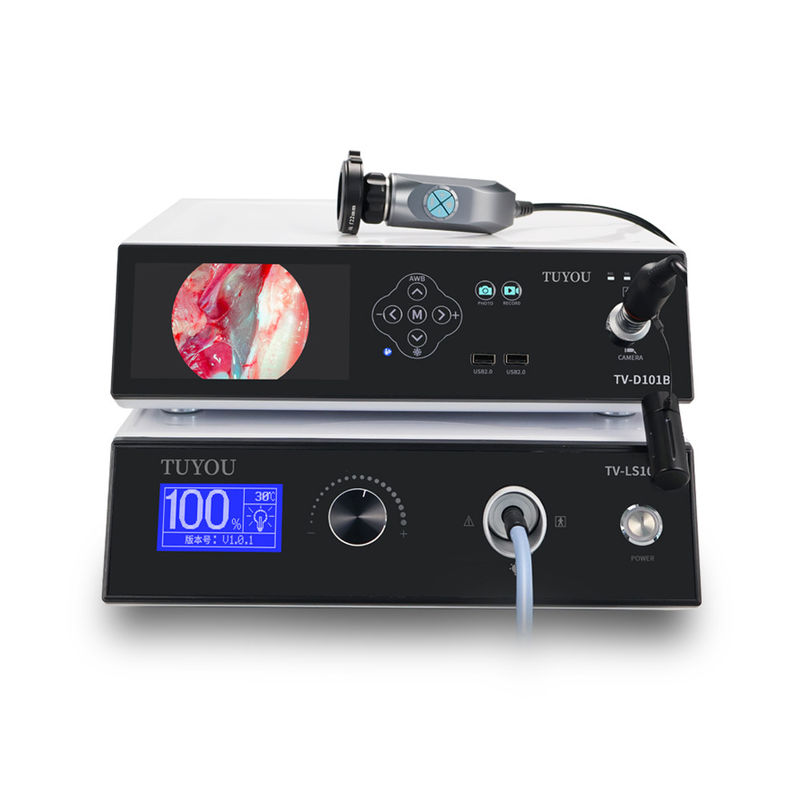

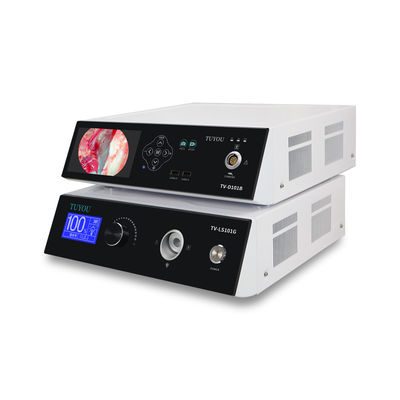

TUYOU Medical Full HD Laparoscopy Tower for Rigid Endoscopy
Product composition:
Endoscope light source imaging system consists of camera control system, handle camera and USB recorder.
Notice: The price does not include OPTIC ENDOSCOPE and Trolley.

Product Features: ● Self-contained video recording system, ● Comes with 6-inch display screen for real-time viewing; ● Two built-in USB full HD video storage, can be connected to an external monitor; ● One-key freeze, one-key white balance, one-key zoom in and out; ● One-key photo/video function;

Handle Camera: Two type of handle camera for you choose.
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 0
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 1
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 2
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 3
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 4
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 5
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 6
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 7
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 8
Customer Feedback
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 9
Company Profile
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 10

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 11
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 12
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 13
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 14
Certifications
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 15
Packing & Delivery
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 16
TUYOU Medical Full HD Laparoscopy Tower for Packaging Standard Carton Box 1 Set/Carton box
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 17
TUYOU Medical Full HD Laparoscopy for Rigid Endoscop 18
FAQ
1.Who are we?
We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers.
2.How can we guarantee quality?
We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment.
3.Why should you buy from us not from other suppliers?
Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services.
4.What is the warranty?
The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period .
5.What's the payment term?
We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
