Medical Endoscope Camera
Created with Pixso. TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument

TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument

Brand Name: TUYOU
Model Number: TU-LSD90TA
MOQ: 1
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE FDA ISO13485
Output Resolution:
4k
Field Of View:
120 Degrees
Material:
Metal, Plastic
Place Of Origion:
Guangdong, China
Certifications:
CE, FDA
Unit Cell Size:
3.75 Umx3.75um
Sensor Type:
CMOS
Cable Length:
3 Meters
Origin:
Shanghai, China
Color:
White
Supply Ability:
100
Highlight:

endoscope camera medical

,

Laparoscopy Surgery Instrument Endoscope Camera

,

4K Laparoscopy Surgery Instrument

Product Description
Overview
Video Description


Product Item No.
TV-LSD90TA (4K Carema)
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 0
Product Parameters
System Parameters
Input Interface
SDI 4K 60FPS
Output Interface
HDMI/SDI/DVI/CVBS/VGA
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Noise
<45db
Working Environment
-10℃~60℃
Product Size
L336*W330*H116mm
Net Weight
4.3KG
Camera Parameters
Image Sensor
1/1.8” CMOS
Effective Pixels
3864(H) × 2192(V)Approx. 8.46M Pixels
Resolution
SDI 4K 60fps
FREEZE
Support
AWB
Support
Min-illumination
Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
D-ZOOM
Image zoom 1-8X
Color
RED/GREEN/YELLOW/BLUE
Brightness
1-30 steps
Sharpness
1-40 steps
Lens Mode
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <3W
Working Current
250mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
100W
Illuminance
2400lm
Color Temperature
5800-6500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
3.8
Products Description

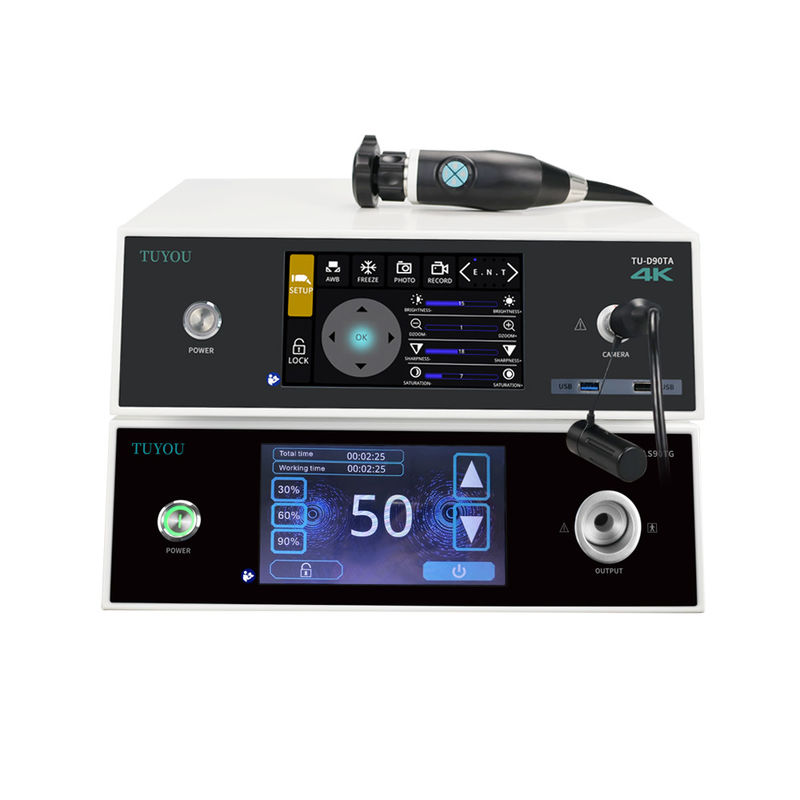

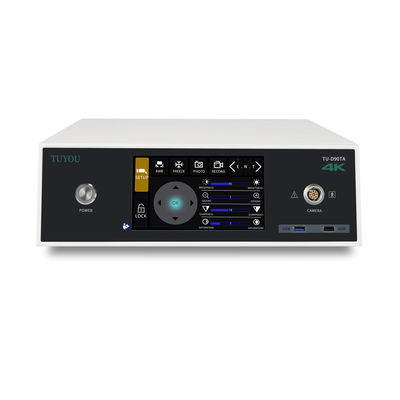

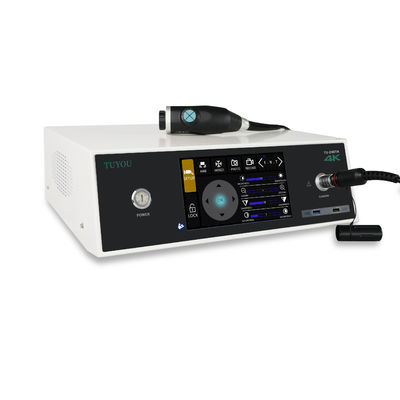

Endoscope camera 4k
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).

● Self-contained video recording system, self-contained light source, and self-contained display screen;
● Two built-in USB full HD image storage, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 1
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 2
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 3
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 4
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 5
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 6
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 7
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 8
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 9
Customer Feedback
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 10
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 11
Company Profile
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 12
Shenzhen Tuyou Medical Imaging Co., Ltd.
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 13
Certifications
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 14
Packing & Delivery
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 15
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 16
TUYOU TU-LSD90TA Endoscope Camera 4K For Laparoscopy Surgery Instrument 17
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
