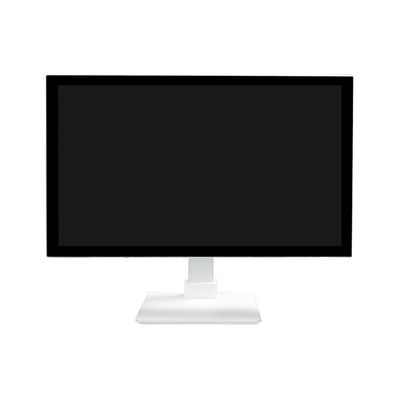

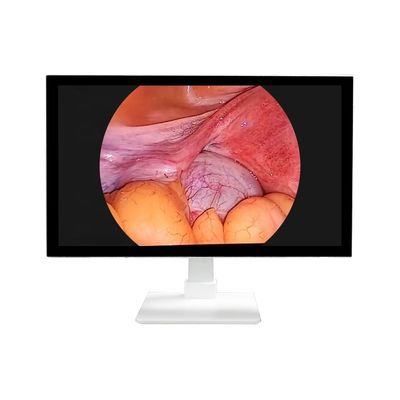

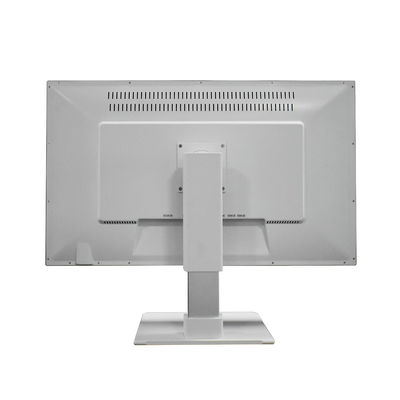

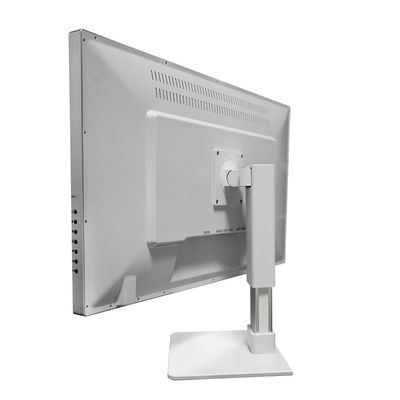

1. 32 inches medical grade monitor;

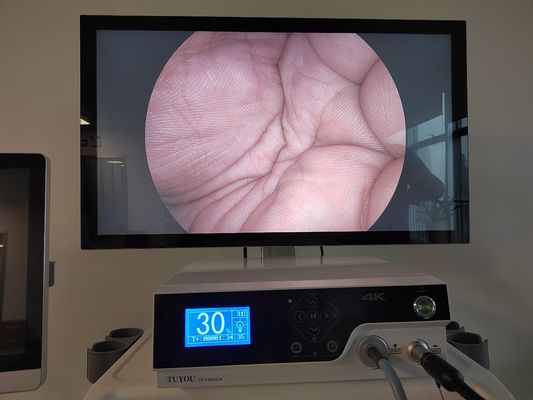

2. 4K camera system with 4K coupler;
3. 80W LED light source;
4. Record and playback function.
Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-32LSD1A
Payment & Shipping Terms
Price: $7,450.00/units 1-9 units
Properties: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Type: |
Endoscope |
Instrument Classification: |
Class I |
Warranty: |
2 Years |
After-sale Service: |
Online Technical Support |
Product Name: |
4K Medical Endoscope Camera |
Application: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Display: |
32 Inch |
Image Sensor: |
1/1.8" SONY CMOS |
Input Interface: |
SDI 4K 60fps |
Output Interface: |
HDMI/SDI |
U Disk: |
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos |
Camera SNR(Signal Noise Ratio): |
More Than 42Db(AGC Off) |
Power Output: |
DC24V 9.2A |
Function: |
Video Record |
Properties: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Type: |
Endoscope |
Instrument Classification: |
Class I |
Warranty: |
2 Years |
After-sale Service: |
Online Technical Support |
Product Name: |
4K Medical Endoscope Camera |
Application: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Display: |
32 Inch |
Image Sensor: |
1/1.8" SONY CMOS |
Input Interface: |
SDI 4K 60fps |
Output Interface: |
HDMI/SDI |
U Disk: |
Udisk USB2.0/USB3.0(up To 32GB)to Record And Take Photos |
Camera SNR(Signal Noise Ratio): |
More Than 42Db(AGC Off) |
Power Output: |
DC24V 9.2A |
Function: |
Video Record |
|
System Parameters
|
|
|
|
Input Interface
|
SDI 4K 60FPS
|
|
|
Output Interface
|
HDMI/SDI
|
|
|
Keypad Control
|
Control the mainboard menu and shortcut keys through RX/TX
|
|
|
Power
|
AC110V~240V
|
|
|
U Disk
|
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
|
|
|
Shortcut Key Function
|
Freeze/White Balance/Video/Photo/Digital Zoom
|
|
|
Maximum Resolution
|
4096*2160@60H
|
|
|
Noise
|
<45db
|
|
|
Display Parameters
|
|
|
|
Image Sensor
|
1/1.8” CMOS
|
|
|
Effective Pixels
|
4K pixels
|
|
|
Image size (horizontal x vertical)
|
3840*2160P
|
|
|
Scan System
|
Progressive scan
|
|
|
Mode selection
|
E.N.T/LAPAROSCOPE/CYSTOSCOPE/URETEROSCOPE/ARTHROSCOPY/DISKOSCOPE/FIBERSCOPE/PRESET
|
|
|
Language
|
Chinese, English, Japanese, Korean, Russian, Arabic and others
|
|
|
Light Source Parameters
|
|
|
|
Light Type
|
LED
|
|
|
Effective Optical Power
|
80W
|
|
|
Illuminance
|
400W LUX
|
|
|
Color Temperature
|
5700K +/-500K
|
|
|
Brightness Adjustment
|
Support
|
|
|
Light Emitting Area (mm²)
|
7.7
|
|
