Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-Y3HDS
Payment & Shipping Terms
Price: $560.00 - $675.00/units
Packaging Details: Portable Full HD 1080P Endoscopy Medical Camera System for Pet Veterinary ENT/Laparoscopic Surgery
Standard carton
1 Set/Carton Box
Supply Ability: 500 Unit/Units per Week Portable Full HD 1080P Endoscopy Medical Camera System for Pet
Power Source: |
Manual |
Warranty: |
2 Years |
After-sale Service: |
NONE |
Material: |
Metal, Plastic, Steel |
Shelf Life: |
2 Years |
Quality Certification: |
CE ISO FCC |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Product Name: |
Medical Camera System |
Application: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Sensor: |
1/1.8" SONY CMOS |
Effective Pixels: |
19454H) * 1092(V)Approx. |
Resolution: |
1080P |
SNR (Signal Noise Ratio): |
More Than 42Db(AGC Off) |
Quick Function: |
Freeze, Zoom In And Out, AWB |
Handle Wire Cord Length: |
3 Meters |
Endoscope Mount: |
International Standard C-mount |
Device Output Signal: |
HDMI/CVBSimage Signal Output |
Power Source: |
Manual |
Warranty: |
2 Years |
After-sale Service: |
NONE |
Material: |
Metal, Plastic, Steel |
Shelf Life: |
2 Years |
Quality Certification: |
CE ISO FCC |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Product Name: |
Medical Camera System |
Application: |
Laparoscopy/gynecology/Urology/ENT Surgery Etc. |
Sensor: |
1/1.8" SONY CMOS |
Effective Pixels: |
19454H) * 1092(V)Approx. |
Resolution: |
1080P |
SNR (Signal Noise Ratio): |
More Than 42Db(AGC Off) |
Quick Function: |
Freeze, Zoom In And Out, AWB |
Handle Wire Cord Length: |
3 Meters |
Endoscope Mount: |
International Standard C-mount |
Device Output Signal: |
HDMI/CVBSimage Signal Output |
|

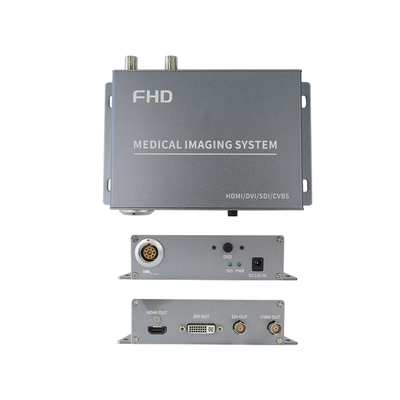

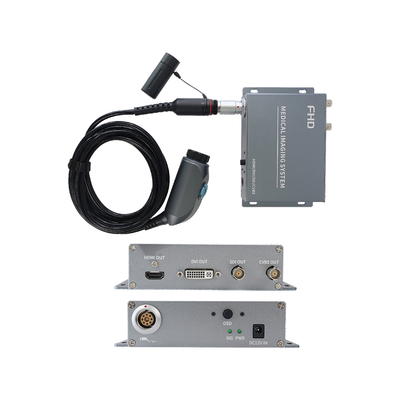

Item No.
|
TU-Y3HDS
|
|
Camera Parameters
|
|
|
|
Keyword
|
1080P 1.8inch HDMI+SDI+DVI OUTPUT
|
|
|
Sensor
|
1/1.8” CMOS
|
|
|
Output Pixels
|
1845(H) × 1097(V)Approx. 2.13M pixels
|
|
|

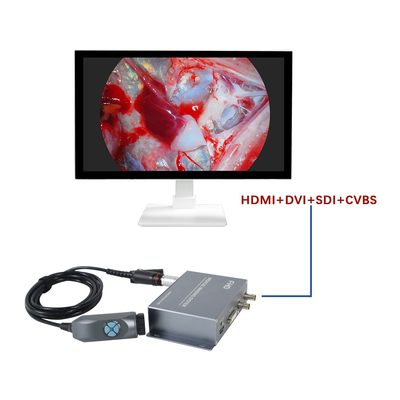

Output Signal
|
DVI+SDI+HDMI
|
|
|
SDI
|
HD-SDI/EX-SDI switchable
|
|
|
Frame Rate
|
1080P (60fps)
|
|
|
S/N Ratio (Signal to Noise Ratio)
|
>42dB
|
|
|
Quick Function
|
Freeze, white balance, 0-8x zoom in and out
|
|
|
Brightness
|
1-20 steps
|
|
|
Auto AGC
|
1-20 steps
|
|
|
Sharpness
|
1-20 steps
|
|
|
BACKLIGHT
|
OFF/BLC/HLC/WDR
|
|
|

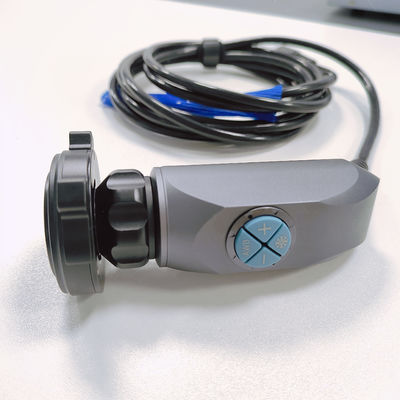

Endoscope Handle Cord Length
|
3M
|
|
|
Endoscope Mount
|
International standard C-mount, which can be connected to imported domestic hard mirrors
|
|
|
Waterproof
|
IP67
|
|
|
Working Temperature
|
-30℃-60℃
|
|
|
Language
|
Chinese/English/Japanese/Korean polyglot
|
|
|
Power(Max.) Supply
|
DC12V ±10%<1.7W
|
|
|
Working Current
|
140mA±10mA
|
|
|
Product Size
|
97.3mm*43.5mm
|
|
