Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-1080PUSB
Payment & Shipping Terms
Price: $330.00 - $459.00/units
Packaging Details: Standard carton with foam
1Set/Carton Box
Supply Ability: 500 Unit/Units per Week Full HD CMOS Medical Portable USB Endoscope Camera for ENT Nasal
Power Source: |
Electric |
Warranty: |
1 Year |
After-sale Service: |
Onsite Training |
Material: |
Metal, Plastic |
Shelf Life: |
1year |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class I |
Safety Standard: |
None |
Product Name: |
Medical USB Endoscope Camera |
Application: |
Rigid Endoscope |
Sensor: |
1/2.8" Sony CMOS |
Effective Pixels: |
1945(H) X 1109(V) |
Resolution: |
1080P (60fps) |
Power Supply: |
USB3.0 DC5V+/-10% |
Quick Function: |
White Balance(AWB) |
Handle Wire Cord Length: |
2.5 Meters |
Endoscope Mount: |
International Standard C-mount |
Language: |
Multi Language |
Power Source: |
Electric |
Warranty: |
1 Year |
After-sale Service: |
Onsite Training |
Material: |
Metal, Plastic |
Shelf Life: |
1year |
Quality Certification: |
CE,FCC |
Instrument Classification: |
Class I |
Safety Standard: |
None |
Product Name: |
Medical USB Endoscope Camera |
Application: |
Rigid Endoscope |
Sensor: |
1/2.8" Sony CMOS |
Effective Pixels: |
1945(H) X 1109(V) |
Resolution: |
1080P (60fps) |
Power Supply: |
USB3.0 DC5V+/-10% |
Quick Function: |
White Balance(AWB) |
Handle Wire Cord Length: |
2.5 Meters |
Endoscope Mount: |
International Standard C-mount |
Language: |
Multi Language |
|
Item No.
|
TU-1080PUSB
|
|
System Parameters
|
|
|
|
Key Words
|
USB3.0 Portable Endoscope Camera
|
|
|
Sensor
|
1/2.8” CMOS
|
|
|
Effective Pixels
|
1945(H) × 1109(V)Approx. 2.16M pixels
|
|
|
Scanning Mode
|
Progressive
|
|
|
Resolution
|
1080P (60fps)
|
|
|
Min-illumination
|
Color:DSS:0.017LUX, BW DSS: 0.08 LUX
|
|
|
Quick Function
|
One key Auto white balance(AWB)
|
|
|
S/N Ratio
|
More than 42Db
|
|
|
Endoscope Handle Cord Length
|
2.5M
|
|
|
Endoscope Mount
|
International standard C-mount, which can be connected to imported domestic hard mirrors
|
|
|
Working Temperature
|
-30℃-60℃
|
|
|
Power(Max.) Supply
|
DC5V ±10%(USB power supply)
|
|
|
Working Current
|
1.2W(≤100mA )
|
|
|
Product Size
|
120*210MM
|
|
|

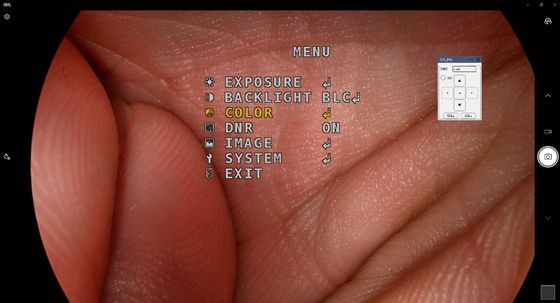

Main Menu Parameters
|
|
|
|
Brightness
|
1-20 steps
|
|
|
AGC
|
1-20 steps
|
|
|
BACKLIGHT
|
OFF/BLC/HLC/WDR
|
|
|
Color(AWB)
|
One key auto white balance
|
|
|
DNR
|
OFF/ON
|
|
|
Sharpness
|
1-10 steps
|
|
|
MIRROR/FLIP
|
OK
|
|
|
DEFOG
|
OK
|
|
|
Language
|
Multi Language
|
|
