Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Model Number: TU-D1600T
Payment & Shipping Terms
Price: $980.00 - $1,200.00/units
Properties: |
Diagnosis & Injection |
Product Name: |

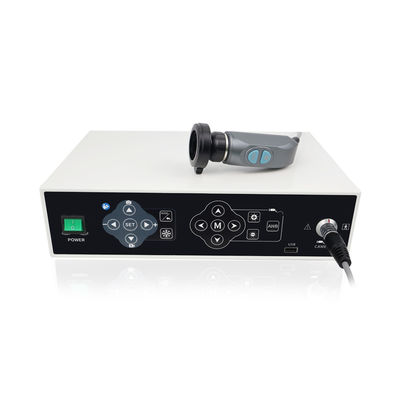

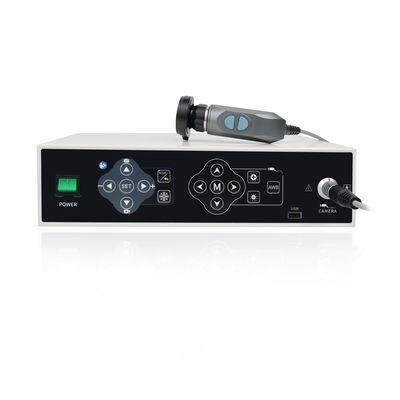

Endoscopy Camera Full HD |
Sensor: |
1/2.8" SONY CMOS |
Effective Pixels: |
1945(H) *1109(V)Approx. 2.16M Pixels |
Resolution: |
1080P (60fps) |
SNR: |
More Than 42 DB |
Language: |
Multi Language |
Working Current: |
1.2W(≤100mA ) |
Color(AWB): |
One Key Auto White Balance |
MIRROR/FLIP: |
OK |
Properties: |
Diagnosis & Injection |
Product Name: |
Endoscopy Camera Full HD |
Sensor: |
1/2.8" SONY CMOS |
Effective Pixels: |
1945(H) *1109(V)Approx. 2.16M Pixels |
Resolution: |
1080P (60fps) |
SNR: |
More Than 42 DB |
Language: |
Multi Language |
Working Current: |
1.2W(≤100mA ) |
Color(AWB): |
One Key Auto White Balance |
MIRROR/FLIP: |
OK |
|
Item No.
|
TU-D1600T
|
|
Parameters
|
|
|
|
Resolution
|
SDI:1080P@30fps,1080P@60fps
|
|
|
Output
|
HDMI
|
|
|
Effective Pixels
|
1845(H) × 1097(V)Approx. 2.13M pixels
|
|
|
SDI
|
HD-SDI/EX-SDI switchable
|
|
|
IMAGE SENSOR
|
1/2.8” SONY CMOS
|
|
|
BRIGHTNESS
|
1-20 steps
|
|
|
SHARPNESS
|
1-20 steps
|
|
|
BACKLIGHT
|
OFF/BLC/HLC/WDR
|
|
|
AWB
|
Preset/Purshing
|
|
|
FREZZ
|
SUPPORT
|
|
|
D-ZOOM
|
Image zoom in /out
|
|
|
Endoscope mode
|
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
|
|
|
Working temperature
|
-10℃-+75 ℃
|
|
|
LANGUAGE
|
CHINESE/ENGLISH....etc
|
|
|
Color ADJ
|
User Define:
Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 |
|
|
Power Supply
|
DC12V ±10%<1.7W
|
|
|
Power consumption
|
1 .2 W(≤100mA )
|
|
|
Working Current
|
140mA±10mA
|
|
|
Please Note
|
The optic endoscope and LED light source is Recommend part.
|
|
|
Product Color
|
Black and Blue color is available.
|
|
