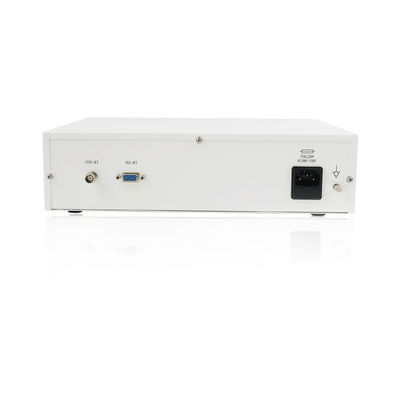

Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use

Brand Name: TUYOU
Model Number: TU-PY102
MOQ: 1
Price: $225.00 - $310.00/units
Delivery Time: 7-15 working days
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO13485
Warranty:
2 Years
Instrument Classification:
Class II
Output:
VGA+CVBS
Effective Pixel:
1305(H)*977(V)
Image Sensor:
1/2.8" Sony CMOS
Output Resolution:
720P(50/60fps)
Power Supply:
AC110-240V
Sensor Type:
CMOS
Packaging Details:
Standard carton with foam
1Set/Carton Box
Supply Ability:
500 Unit/Units Per Month
Highlight:

medical rigid endoscope camera

,

rigid endoscope camera 720p

,

medical camera endoscope

Product Description
Well Noted:
The Optic endoscope is OPTIONAL part.
Product Parameters
Product Item No.
TU-PY102
Parameters

Input Interface
CVBS(1000TVL)
Output
VGA+CVBS
Resolution
720P 60fps
SDI
HD-SDI/EX-SDI switchable
Horizontal Resolution
1000 lines
IMAGE SENSOR
1/2.8” CMOS
OSD MENU
UP,DOWN,LEFT,RIGHT,MENU button
BRIGHTNESS
1-20 steps
SHARPNESS
1-10 steps
BACKLIGHT
OFF/BLC/HLC/WDR
FREZZ
SUPPORT
D-ZOOM
1-10x Image zoom in /out
Endoscope mode
Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
LANGUAGE
CHINESE/ENGLISH....etc
Image Processor Size
300*200*85mm
Power Supply
AC110V-240V
Power Supply of handle camera
DC12V 150mA＜2W
Products Description
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use
Product Composition:
CVBS endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical.
CVBS input, VGA/CVBA output, there are control menu and shortcut key function. Widely used in medical industry.

TU-VC01A Features:
● 1/2.8" CMOS sensor, 720p resolution;
● 1-20 steps brightness adjustment, 1-10 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 0

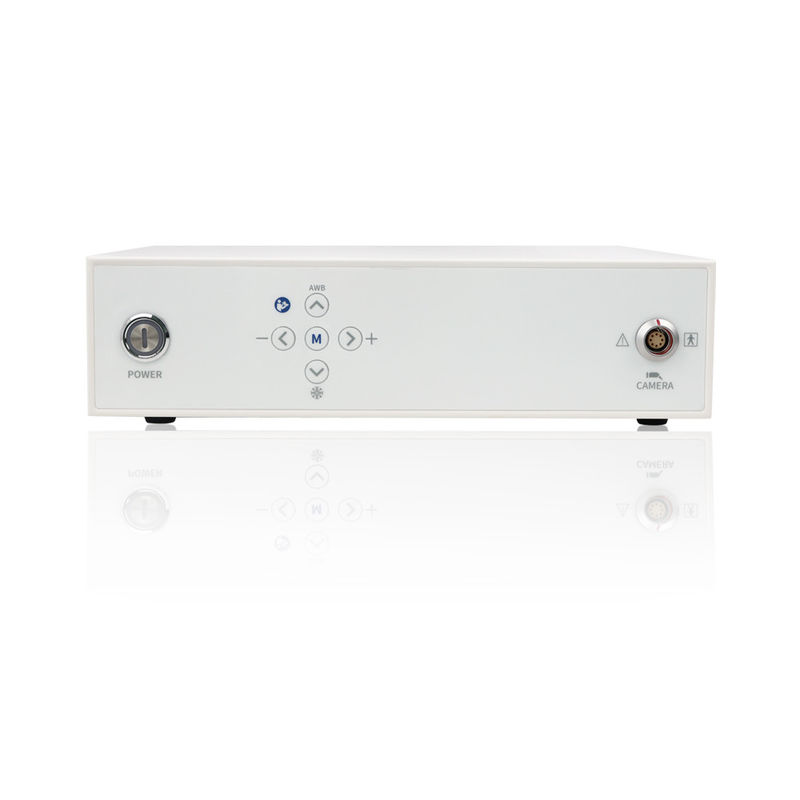

Endoscopy Camera Processor
SET/UP/DOWN/LEFT/RIGHT SET:
▶ For Enter and confirm functions. Press the MENU, you can enter the camera menu, if you change the parameter of the camera, press
SET if for confirm.
▶ Left, right, up, down are for direction Function.
▶ The up, down, left, right also written the hot keys function already, UP for AWB, DOWN for Freeze, LEFT for zoom in, RIGHT for
zoom out
Shortcut key
AWB:Before use,point the lens at the white paper, press the white balance button and wait for the white balance to adjust.
FREEZE:Make the image to freeze
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 1
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 2
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 3
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 4

Customer Feedback
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 5
Company Profile
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 6
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 7
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 8
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 9
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as
disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications,providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions.Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 10
Certifications
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 11
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 12
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 13
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 14
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 15
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 16
Packing & Delivery
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 17
720P Endoscopy Camera Portable Endoscope Imaging System
Packaging Standard Carton Box 1 Set/Carton box
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 18
Medical Rigid Endoscope Camera 720P CVBS/VGA Supportive For Doctor Veterinary Use 19
FAQ
1.Who are we? We are an original manufacturer, located in Guangdong, China. Near export port,this is how we keep competitive strength for global valued customers. 2.How can we guarantee quality? We have got the ISO13485 qualification,We control the entire production process, from raw material procurement to the final product delivery, to ensure product quality and timely shipment. 3.Why should you buy from us not from other suppliers? Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. Our company has more than 20 years of experience in video research and and development,So we have the ability to provide OEM/ODM services. 4.What is the warranty? The free warranty is two years. If there has any problem of products we will repair and change the problematic parts for free during the warranty period . 5.What's the payment term? We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
