Full HD Endoscope Medical Camera 100W Light Source For ENT Urology Gynecology Ophthalmology

Name: Full HD Endoscope Medical Camera 100W Light Source For ENT Urology Gynecology Ophthalmology
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TU-LSH101B
Price: 1,900.00 USD
Availability: InStock

Brand Name:	TUYOU
Model Number:	TU-LSH101B
MOQ:	1pc
Delivery Time:	4-8 work weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO-13485

Image Sensor:

1/1.8” SONY CMOS

Packaging Details:

Carton 46.5*45*21.5cm

Supply Ability:

50pcs per month

Highlight:

Full HD Endoscope Medical Camera

ENT Endoscope Medical Camera

Urology ent endoscope camera usb

Product Description

Key attributes

Industry-specific attributes

Warranty

2 years

After-sale Service

Free spare parts

Other attributes

Place of Origin

Guangdong, China

Brand Name

TUYOU

Model Number

TV-LSH101B

Power Source

Electric

Material

Metal, Plastic

Shelf Life

2 years

Quality Certification

CE,FCC

Instrument classification

Class II

Safety standard

None

Product Name

Medical Endoscope Camera

Application

Laparoscopy/gynecology/Urology/ENT surgery etc.

Properties

Surgical Instruments

Power

AC110V-240V

Image Sensor

1/1.8" SONY CMOS

Input Interface

SDI 1080P 60FPS

Output interface

HDMI/SDI

SNR(Signal Noise Ratio)

More than 42Db(AGC off)

FREEZE

Support

AWB

Support

Lead time

Quantity (units)	1 - 1	2 - 10	> 10
Lead time (days)	7	10	To be negotiated

Product Parameters

Product Item No.

TV-LSH101B (1080P Carema)

System Parameters
Input Interface	SDI 1080P 60FPS

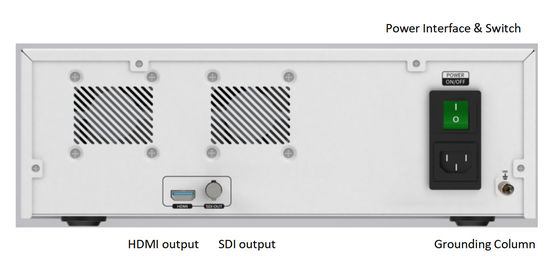

Output Interface	HDMI/SDI
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
Shortcut Key Function	Freeze/White Balance/Video/Photo/Digital Zoom
Shortcut Key Function	Freeze/White Balance/Video/Photo/Digital Zoom
Noise	<45db
Working Environment	10℃~60℃
Product Size	L336W330H116mm
Net Weight	4.2KG

Camera Parameters
Image Sensor	1/1.8” SONY CMOS
Effective Pixels	1845(H) × 1097(V)Approx. 2.13M pixels
Resolution	SDI 1080P 60fps
FREEZE	The picture freezes
AWB	One Button White Balance
Min-illumination	Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)	More than 42Db(AGC off)
D-ZOOM	Image zoom 1-8X
Color	RED/GREEN/YELLOW/BLUE
Brightness	1-30 steps
Sharpness	1-40 steps
Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30℃~70℃
Power(Max.) Supply	DC12V ±10% <1.7W
Working Current	140mA±10mA

Light Source Parameters
Light Type	LED
Effective Optical Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support
Light Emitting Area (mm²)	3.8

Product Description

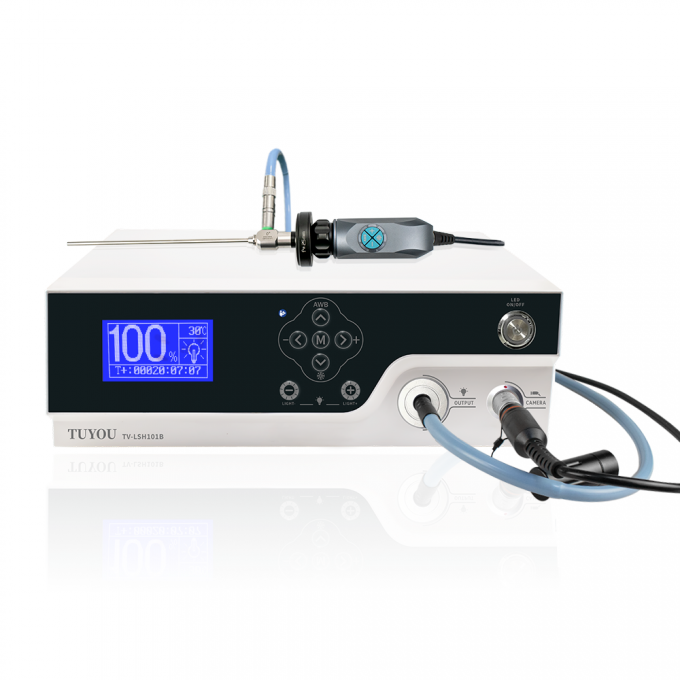

Product Composition Introduction:

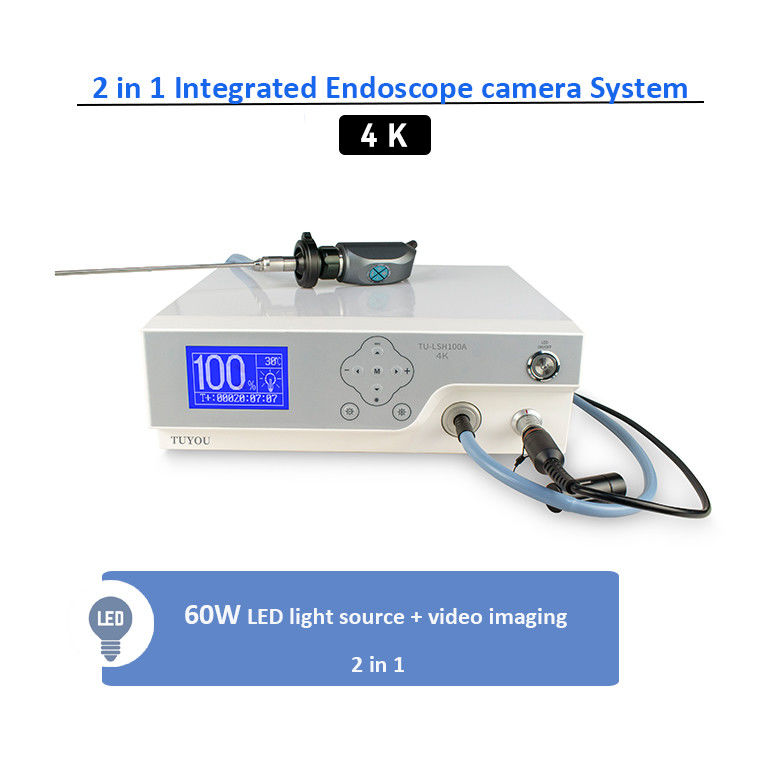

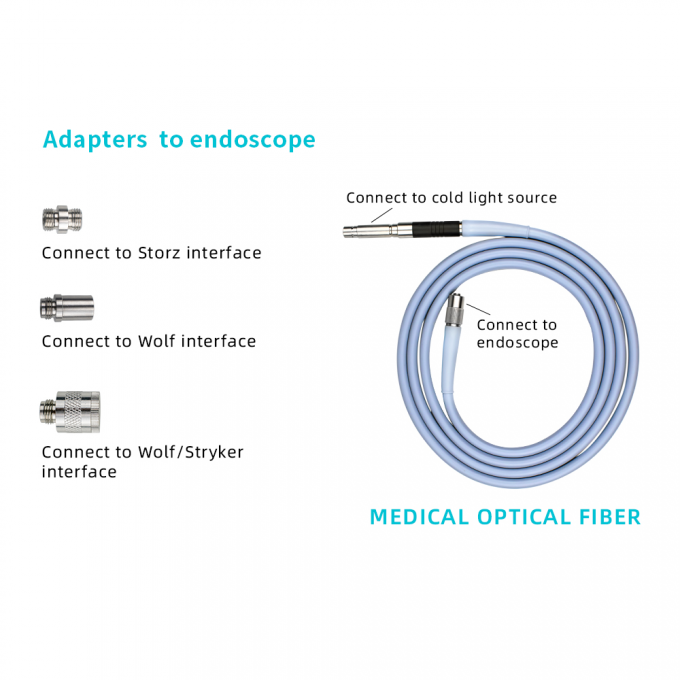

The endoscope light source imaging system consists of a endoscope processor, a handle camera, a light guide and an optical adapter
(optical interface).

It is widely used in ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other
departments in clinical practice

● Self-contained light source, and self-contained display screen;

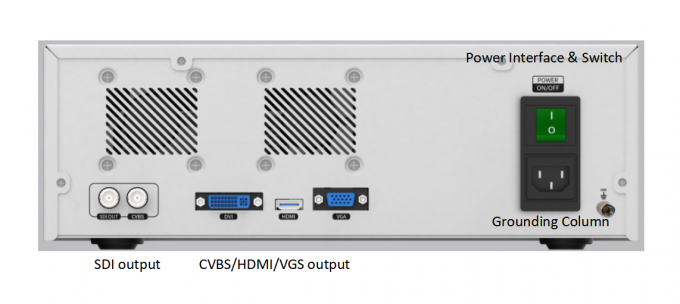

● Multiple output signals, can be connected to an external display;
● One-key freeze, one-key white balance, one-key key to zoom in and out;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

Notes: In different lens models, optical lenses should be matched. Some shots match as below:

SIZE	Laparoscopic	Synscope	Laryngoscope	Hysteroscope	Arthroscopye
1/2"	35mm	28mm	28mm	28mm	28mm
1/3"(native)	28mm	22mm	22mm	22mm	22mm
1/4"	22mm	18mm	18mm	18mm	18mm

Customer Feedback

Company Profile

Shenzhen Tuyou Medical Imaging Co., Ltd.

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products. Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of
national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications,providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Certifications

Global Exhibition

Packing & Delivery

FAQ

Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You
are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
