Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function

Product Details

Place of Origin: Guangdong, China

Brand Name: TUYOU

Certification: CE/FDA/ISO13485

Model Number: TU-LSD90TA

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $4,660.00/units 1-49 units

Delivery Time: 7-15 working days

Get Best Price
Highlight:

touchscreen medical endoscopy camera

,

touchscreen endoscope medical camera

,

led light source endoscope medical camera

Type:
Examination Therapy Equipments
Instrument Classification:
Class I
Warranty:
2 Years
After-sale Service:
Online Technical Support
Output Interface:
HDMI/SDI/DVI/CVBS/VGA
Shortcut Key Function:
Freeze/White Balance/Video/Photo/Digital Zoom
Image Sensor:
SONY CMOS
Effective Pixels:
3840*2160
Signal To Noise Ratio:
More Than 42Db(AGC Off)
Color Temperature:
4500-6500K
Type:
Examination Therapy Equipments
Instrument Classification:
Class I
Warranty:
2 Years
After-sale Service:
Online Technical Support
Output Interface:
HDMI/SDI/DVI/CVBS/VGA
Shortcut Key Function:
Freeze/White Balance/Video/Photo/Digital Zoom
Image Sensor:
SONY CMOS
Effective Pixels:
3840*2160
Signal To Noise Ratio:
More Than 42Db(AGC Off)
Color Temperature:
4500-6500K
Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function
Product Description
Input Interface
4K
Output Interface
HDMI / SDI
Power Supply
AC110V~240V
Shortcut Key Function
Freeze/white balance/digital zoom
SNR(Signal Noise Ratio)
<45dB
Working Environment Temperature
0℃~40℃
Size
L336*W330*H116mm
Weight
4.2KG
Warranty
2 years
Light Source Specification
Light Source Type
LED
Effective Optical Power
100W
Color Temperature
4500-6500K
Bright Adjustment
Support
Luminous Area
3.8mm
Service Life
30000h
Handle Camera
Image Sensor
SONY CMOS
Resolution
4K(3840×2160 pixels)
1080P(1920×1080 pixels)
FREEZE
Support
AWB(White Balance)
Support
D-ZOOM
0-8x
Brightness
1-30 steps
Support Lens Mode
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT/Custom
Support Language
Chinese, English, Japanese, Korean and other languages.
Working Environment Temperature
0℃~40℃

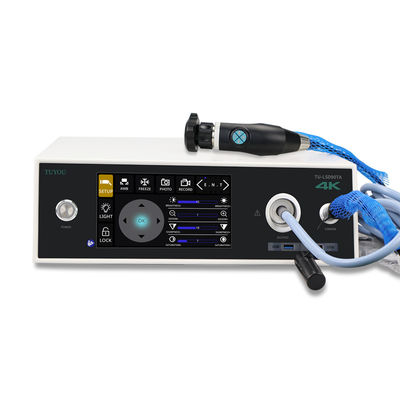

Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function 0
Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function Function
1. Medical Endoscope Camera adapts latest technology provides sharper details with low delay and high color accuracy;

2. When AWB uses information from the scene and calibrates how white object should appear under different light sources and condition, doctors can achieve actual color rendition and accurate results;

3. Different color's settings, USB record function, freeze and zoom in/out, these multi-functions can always meet doctor's need;

4. Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup;


5. Built-in 100 Watts Cold LED Light Source works great with the high sensitivity of the camera sensor;

6. Multy speciality modes available in different types of Technology Surgery available direct on the front touch screen menu like Laparoscopy, ENT, Arthroscope, Fiber, Hysteroscope etc.

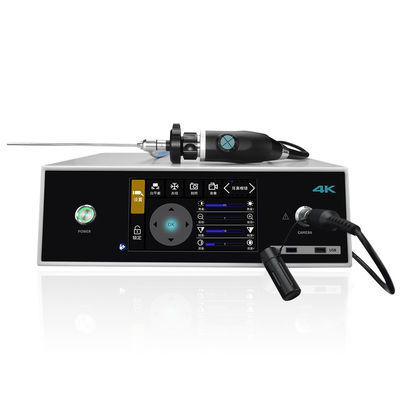

Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function 1
Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function 2
Packing & Delivery
Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function 3
Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function 4

Touchscreen Medical Endoscopy Camera System With LED Light Source Record Function
Standard carton with foam 1 Set/Carton Box
