Product Details
Place of Origin: Guangdong, China
Brand Name: TUYOU
Certification: CE/FDA/ISO13485
Model Number: TV-D101A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $4,390.00 - $5,650.00/sets
Delivery Time: 7-15 working days
Waterproof: |
Yes |
After-sale Service: |
Online Technical Support |
Instrument Classification: |
Class I |
Camera Type: |
Camera System |
Power: |
AC110V-240V |
Image Sensor: |
1/1.8" SONY CMOS |
Video Output: |
HDMI/SDI/CVBS/DVI/VGA |
SNR(Signal Noise Ratio): |
<45db |
Waterproof: |
Yes |
After-sale Service: |
Online Technical Support |
Instrument Classification: |
Class I |
Camera Type: |
Camera System |
Power: |
AC110V-240V |
Image Sensor: |
1/1.8" SONY CMOS |
Video Output: |
HDMI/SDI/CVBS/DVI/VGA |
SNR(Signal Noise Ratio): |
<45db |
|
Item No.
|
TV-D101A(4K Carema)
|
|
System Parameters
|
|
|
|
Input Interface
|
4K
|
|
|
Output Interface
|
HDMI/SDI/CVBS/DVI/VGA
|
|
|
Keypad Control
|
Control the motherboard menu and shortcut keys through RX/TX
|
|
|
Power
|
AC110V~240V
|
|
|
U Disk
|
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
|
|
|
Shortcut Key Function
|
Freeze/white balance/video/photograph/digital zoom
|
|
|
SNR(Signal Noise Ratio)
|
<45db
|
|
|
Working Environment
|
-10℃~60℃
|
|
|
Product Size
|
L336*W330*H116mm
|
|
|
Net Weight
|
3.9KG
|
|
|
Camera Parameters
|
|
|
|
Image Sensor
|
1/1.8” CMOS
|
|
|
Effective Pixels
|
3864(H) × 2192(V)Approx. 8.46M pixels
|
|
|
Resolution
|
SDI 4K
|
|
|
D-ZOOM
|
0-8x
|
|
|
Brightness
|
1-30 steps
|
|
|
Lens Mode
|
Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
|
|
|
Language
|
Chinese, English, Japanese, Korean and other languages
|
|
|
Working Environment
|
-30℃~60℃
|
|
|
Power(Max.) Supply
|
DC12V ±10%<1.7W
|
|
|
Working Current
|
250mA±10mA
|
|

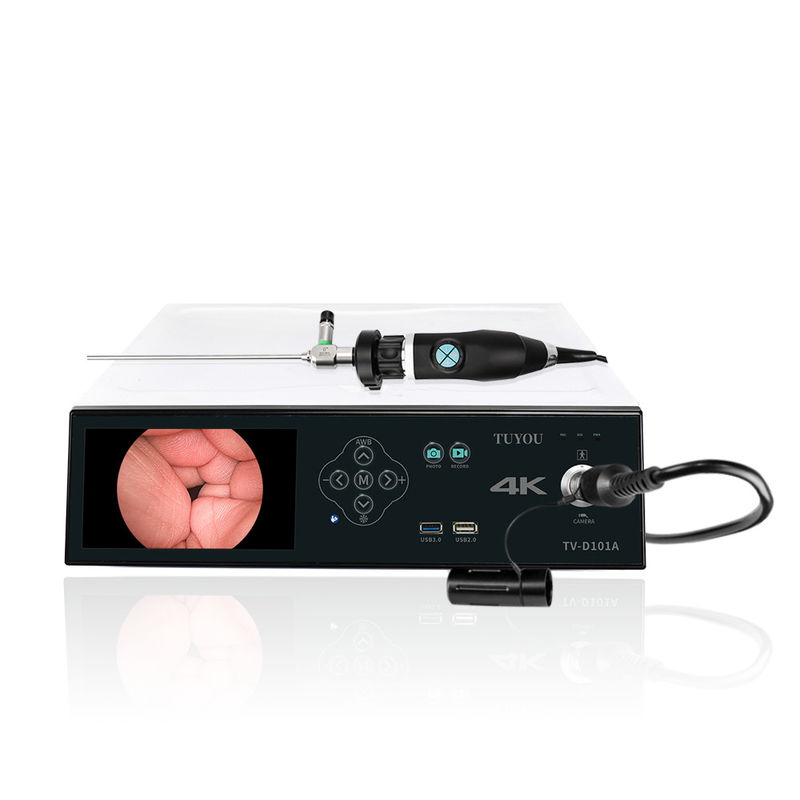

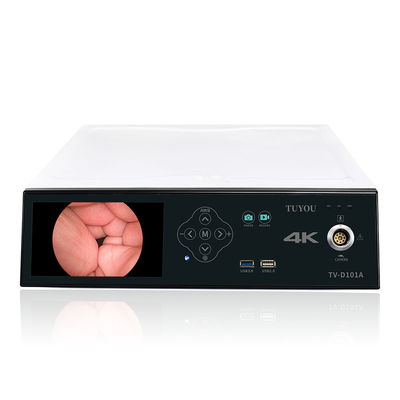

Doctor Veterinary Use 4K Integrated Ent Laparoscopy Medical Endoscopy Camera
Product composition:
