Medical Endoscope Camera
Created with Pixso. Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology

Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology

Brand Name: TUYOU
Model Number: TU-15LSD
MOQ: 1
Price: $1,600.00 - $2,690.00
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE FDA ISO13485
Properties:
Surgical Instruments
Place Of Origin:
Guangdong, China
Brand Name:
TUYOU
Model Number:
TU-15LSD
Product Name:
Endoscopic Camera
Keyword:
FHD USB Record Endoscope System
Power:
AC110V-240V
Image Sensor:
1/1.8" SONY CMOS
Resolution:
1080P
Video Output:
HDMI/SDI/CVBS
SNR(Signal Noise Ratio):
<45db
AWB:
Support
Packaging Details:
46.5X42X31 cm
Supply Ability:
100
Product Description




Product descriptions from the supplier




Overview

Product Parameters
Product Item No.
TU-15LSD1B(1080P Carema)
System Parameters
Input Interface
1080P
Output Interface
HDMI/SDI/CVBS/VGA
Keypad Control
Control the motherboard menu and shortcut keys through RX/TX
Power
AC110V~240V
Built-in Light Source Efficial Power
80W
U Disk
U disk USB2.0*2 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/white balance/video/photograph/digital zoom
SNR(Signal Noise Ratio)
<45db
Working Environment
-10℃~60℃
Product Size
L390*W266*H425mm
Camera Parameters
Image Sensor
CMOS
Effective Pixels
1845(H) × 1097(V)Approx. 2.13M pixels
Resolution
High resolution 1080P
FREEZE
Support
AWB
Support
D-ZOOM
0-8x
Brightness
1-30 steps
Lens Mode
Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
Language
Chinese, English, Japanese, Korean and other languages
Working Environment
-30℃~60℃
Products Description

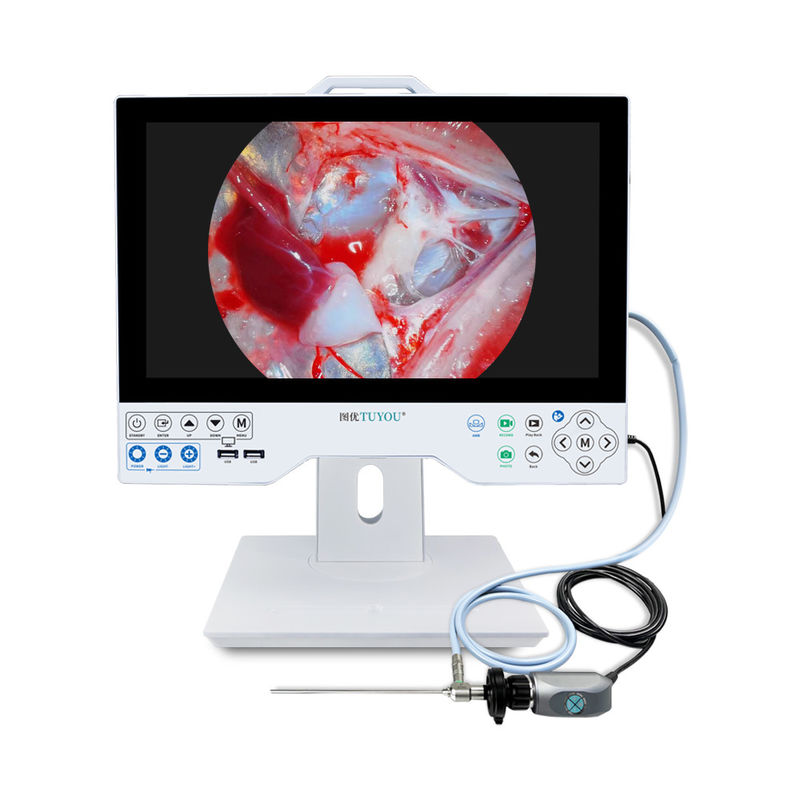

Portable LCD Monitor All in One HD Endoscope Camera
for ENT/Laparoscopy/Hysteroscopy/Urology

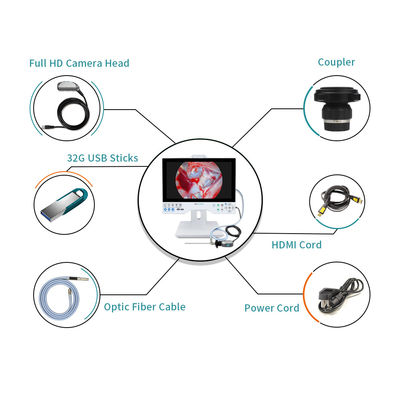

Product composition:
1.Endoscope imaging system consists of camera control system, handle camera,LED light source and optical camera adapter; ( Rigid Endoscopes is recommend part)
2.Two colors of machine stand is available; Two types of handle camera is available;

Product Features:
1. Self-contained video recording system,two built-in USB full HD video storage;
2. Comes with 15.6-inch display screen for real-time viewing;
3. Can be connected to an external monitor;
4. One-key freeze, one-key white balance, one-key zoom in and out;
5. or One-key photo/video function;
6. Light source brightness 1-100steps ;
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 0
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 1
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 2

Rotatable screen.

The scree can be rotated 90 degrees.
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 3

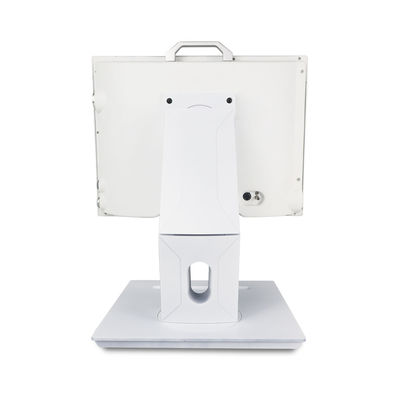

Rotate left and right.

The rotatable base can support rotated at 45 degrees left and right.
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 4

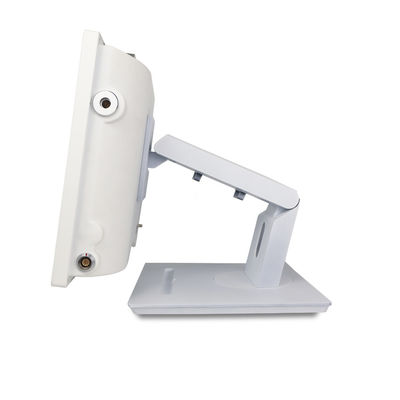

Screen height and angle adjustable.

1. The screen height adjustable;
2. The screen can be adjusted up and down by 35 degrees.
3. Portable handle for easy carrying.
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 5



Four function handle camera
1. White balance;
2. Freeze;
3. Picture Zoom in;
4. Picture Zoom out.
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 6



Four function handle camera(New)
1. White balance;
2. Freeze;
3. Picture capture;
4. Video recording.
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 7
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 8
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 9
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 10
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 11
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 12
Customer Feedback
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 14



Company Profile
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 15
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 16
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 17
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 18



Shenzhen Tuyou Medical Imaging Co., Ltd.

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Certifications
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 20
Packing & Delivery
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 21
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 22
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 23
Portable LCD Monitor All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/Urology 24
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
