100W Effective Optical Power 400W LUX Illuminance 5800-6500k Color Temperature Medical Endoscope Camera System for Laparoscopy ENT Urology Surgery

Name: 100W Effective Optical Power 400W LUX Illuminance 5800-6500k Color Temperature Medical Endoscope Camera System for Laparoscopy ENT Urology Surgery
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TV-LSD101A
Price: 492.00 USD
Availability: InStock

Brand Name:	TUYOU
Model Number:	TV-LSD101A
MOQ:	1 set
Delivery Time:	5-8work days
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ ISO13485/FDA

Brand Name:

TUYOU

Image Sensor:

1/2.8" SONY CMOS, 1/1.8" SONY CMOS

Instrument Classification:

Class I

Model Number:

TV-LSD101A

Keywords:

Endoscope Medical

Properties:

Image System For Medical

Resolution:

Product Name:

Endoscope Medical Camera

Type:

Endoscope

Supply Ability:

1000

Highlight:

100W Effective Optical Power Medical Endoscope Camera System

400W LUX Illuminance Endoscope Imaging System

5800-6500k Color Temperature Laparoscopy Camera

Product Description

Professional FHD 1080P 2-In-1 Medical Endoscope Camera System For Laparoscopy ENT Urology Surgery

Product Name		TUYOU 4K Medical Endoscope Camera System
Model Number		TV-LSD101A
Country of Origin		Guangdong,China

Product Overview: Endoscope Light Source Imaging System

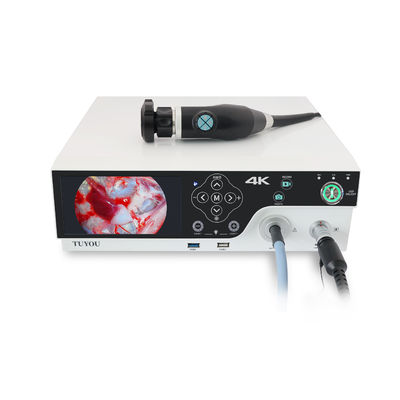

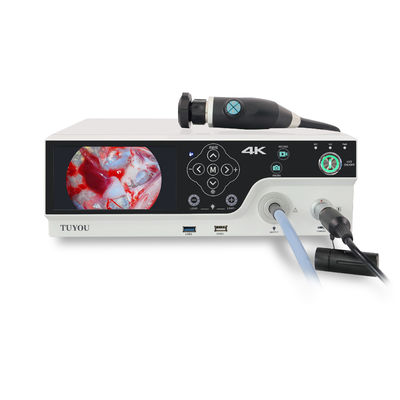

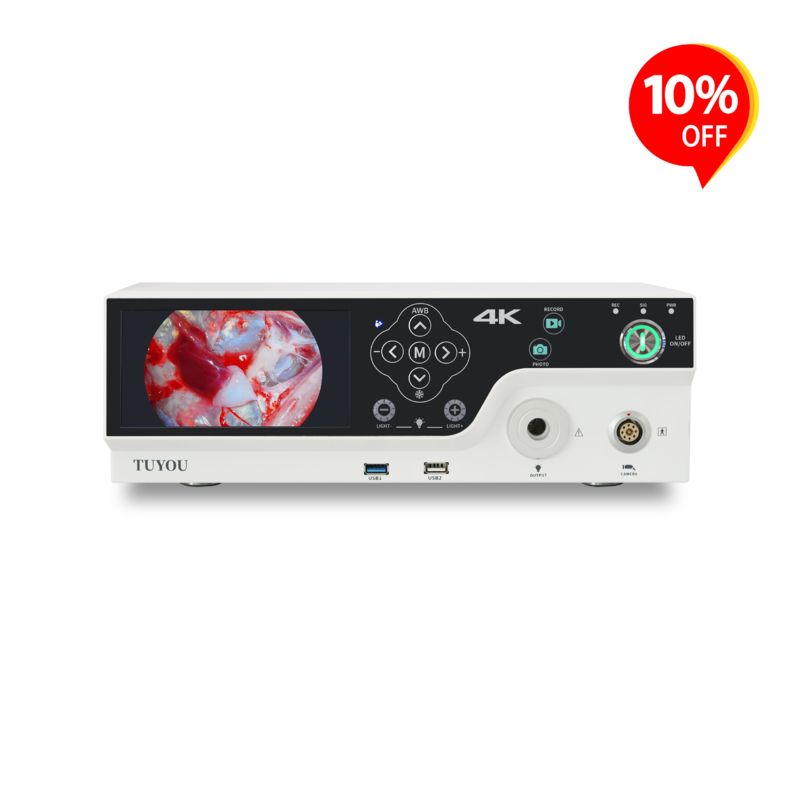

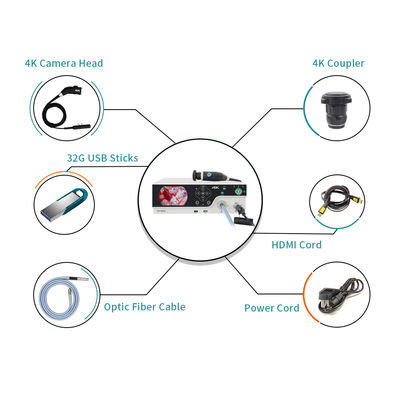

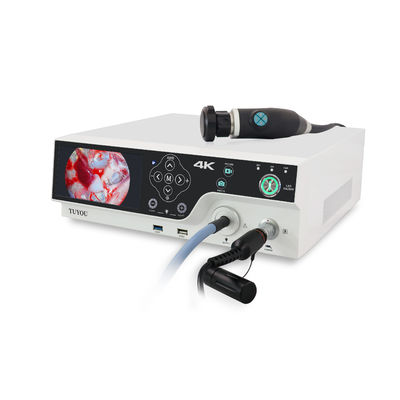

The endoscope light source imaging system combines a camera control system, handheld camera, light guide, and optical adapter (optical interface) into a seamless, fully integrated solution.

Key Features:

All-in-One Design: Integrates a video recording system, light source, and 6-inch display screen for streamlined operation.
Dual USB Storage: Built-in dual USB ports support full HD image and video storage for easy documentation.

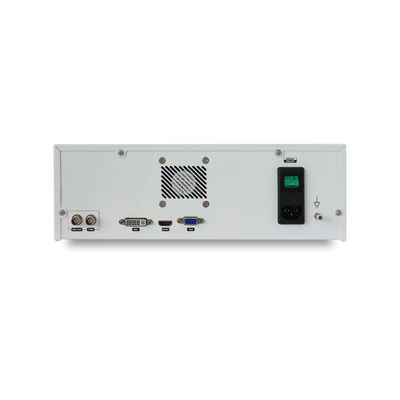

Versatile Connectivity: Supports multiple output signals for compatibility with external monitors.

User-Friendly Controls:

One-touch functions for freeze, white balance, and zoom adjustment.
High-definition photo and video capture capabilities.

Brightness Memory Function:

The LED light source retains previous brightness settings after shutdown, eliminating the need for reinitialization and ensuring consistent performance.

Advanced Specifications:

Compact, portable design optimized for clinical efficiency.
High-resolution imaging for precise diagnostics and improved patient outcomes.

Professional FHD 1080P 2-In-1 Medical Endoscope Camera System For Laparoscopy ENT Urology Surgery

Specification

Certificates		FDA/CE/ISO13485
Power Voltage		AC110-240V
Camera Sensor Size		1/2.8" SONY CMOS
Video Output Interface		HDMI/DVI/VGA/CVBS/SDI
Resolution		4K UHD 60 FPS
AWB		One Key AWB
Freeze		One Key Freeze
Application		Laparoscopy/Gynecology/Urology/E.N.T Surgery,etc.
SNR		More than 42Db(AGC off)
Warranty		2 Years

Light Source Parameters:

Light Type		LED
Effective Optical Power		100W
Illuminance		400W LUX
Color Temperature		5800-6500k
Brightness Adjustment		Support
Light Emitting Area (mm²)		3.8

Professional FHD 1080P 2-In-1 Medical Endoscope Camera System For Laparoscopy ENT Urology Surgery

Professional FHD 1080P 2-In-1 Medical Endoscope Camera System For Laparoscopy ENT Urology Surgery

FAQ

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers, we have 4 production lines and R&D team.

Q: Where are you ?

A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?

A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?

A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?

A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q:What's the payment term?

A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.

Professional FHD 1080P 2-In-1 Medical Endoscope Camera System For Laparoscopy ENT Urology Surgery
