TUYOU TV-D101B 1080P Endoscopic Camera with Built-in Video Recording and HDMI/SDI/CVBS/DVI/VGA Output for One-touch Freeze in Medical Endoscope Imaging System

Name: TUYOU TV-D101B 1080P Endoscopic Camera with Built-in Video Recording and HDMI/SDI/CVBS/DVI/VGA Output for One-touch Freeze in Medical Endoscope Imaging System
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TV-D101B
Price: 2,000.00 USD
Availability: InStock

Brand Name:	TUYOU
Model Number:	TV-D101B
MOQ:	1 set
Delivery Time:	3-15work days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FDA ISO13485

Type:

Endoscope

Instrument Classification:

Class I

Brand Name:

TUYOU

Model Number:

TV-D101B

Properties:

Image System For Medical

Product Name:

Endoscope Medical Camera

Image Sensor:

1/2.8" SONY CMOS

Keywords:

Medical Equipment

Resolution:

1080P

Packaging Details:

Box size: 48.5*48*26" Weight: 11kg ONE PCS

Supply Ability:

2000 a month

Product Description

TUYOU TV-D101B 1080P Endoscopic Camera with 6 inch Display and Recorder for Laparoscopy

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

Product Specifications

System Parameters
Item Number	TV-D101B(1080P TV)
Input Interface	1080P
Output Interface	HDMI/SDI/CVBS/DVI/VGA
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
USB Port	USB2.0/USB3.0 (max 32GB support) for recording/photos
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

1080P Integrated ENT/Laparoscopic Medical Endoscope Camera for Doctors and Veterinarians

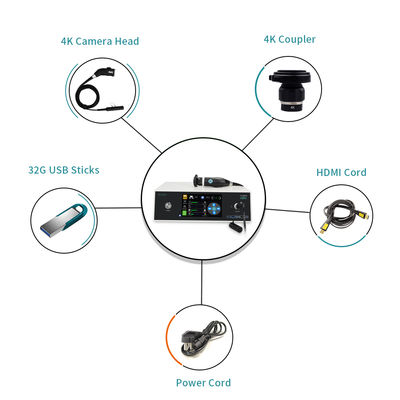

Product Components

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
6-inch display for real-time viewing
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery
