All in One Medical Endoscopy Camera
Created with Pixso. 4K UHD Endoscope Camera System With USB Video Recorder 24 Inch Laparoscopic Monitor Surgical LED And Light Source

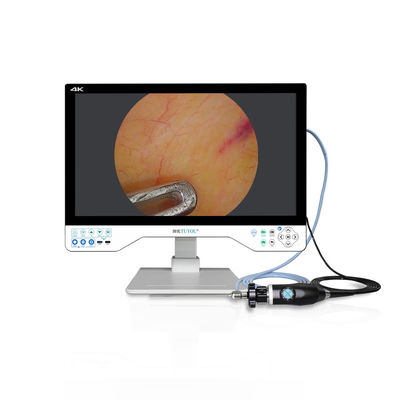

4K UHD Endoscope Camera System With USB Video Recorder 24 Inch Laparoscopic Monitor Surgical LED And Light Source

Brand Name: TUYOU
Model Number: TU-24LSD101A
MOQ: 1pc
Price: US dollar+5200$~6500$/pc
Delivery Time: 4-8 work weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
ISO-13485
Packaging Details:
Carton 70*45*70cm
Supply Ability:
50pcs per month
Highlight:

USB 4k laparoscopic camera

,

UHD 4k laparoscopic camera

,

4K Endoscopy Camera System

Product Description

Key attributes

Industry-specific attributes

Warranty
2 years
After-sale Service
Online technical support

Other attributes

Place of Origin
Guangdong, China
Brand Name
TUYOU
Model Number
TU-24LSD1A
Power Source
Electric
Material
Metal, Plastic, Steel
Shelf Life
2 years
Quality Certification
CE,FCC
Instrument classification
Class II
Safety standard
None
Product Name
4K Endoscope HD Camera With Monitor
Application
Laparoscopy/gynecology/Urology/ENT surgery etc.
Display
24 inch
Power
AC110V-250V
Image Sensor
1/1.8" SONY CMOS
Input Interface
SDI 4K 60fps
Output interface
HDMI/SDI/CVBS/VGA/DVI
Camera SNR(Signal Noise Ratio)
More than 42Db(AGC off)
U Disk
Udisk USB2.0/USB3.0(up to 32GB)to record and take photos
AWB
Support





Lead time

Quantity (units) 1 - 1 2 - 5 > 5
Lead time (days) 5 10 To be negotiated





Overview

Product Parameters
Product Item No.
TU-24LSD1A (4K Carema)
System Parameters
Input Interface
SDI 4K 60FPS
Output Interface
HDMI/SDI/CVBS
Keypad Control
Control the mainboard menu and shortcut keys through RX/TX
Power
AC110V~240V
U Disk
U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function
Freeze/White Balance/Video/Photo/Digital Zoom
Fixing bracket
Support
Maximum Resolution
4096*2160@60H
Noise
<45db
Working Environment
-10℃~60℃
Display Size
L 660mm W 420mm H 90mm
Net Weight
10.4KG
Display Parameters
Model
TU-HS25_4R
Image Sensor
1/1.8” CMOS
Effective Pixels
4K pixels
Image size (horizontal x vertical)
3840*2160P
Scan System
Progressive scan
Signal output
SDI, CVBS, DVI, HDMI, VGA video signal
Features
Built-in video workstation with USB storage, 24-inch monitor
Mode selection
ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Resolution
SDI 4K 60fps
FREEZE
Support
AWB
Support
S/N Ratio (Signal to Noise Ratio)
More than 42Db(AGC off)
Language
Chinese, English, Japanese, Korean, Russian, Arabic and other languages
Working Environment
-30℃~70℃
Power(Max.) Supply
DC12V ±10% <3W
Working Current
250mA±10mA
Light Source Parameters
Light Type
LED
Effective Optical Power
100W
Illuminance
400W LUX
Color Temperature
5700K +/-500K
Brightness Adjustment
Support
Light Emitting Area (mm²)
7.7
Products Description

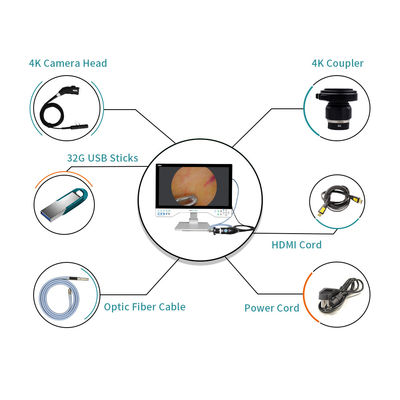

Product Composition Introduction:
The endoscope integrated imaging system consists of a 24-inch Display, Display Holder(the display also can be fix on endoscope cart, the cart is OPTIONAL part), Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter (Optical Interface).

TU-24LSD1A Video Light Source Video Recorder Features:

● 24 inch 4K high-definition display screen;
Two built-in USB full HD video storage, also can be connected to an external monitor
● Built-in LED imported cold light source;
● One-key freeze, one-key white balance, one-key zoom in and out;
● One-key photo/video function;

● Multi-angle height, adjustable at will;





Shenzhen Tuyou Medical Imaging Co., Ltd.
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
