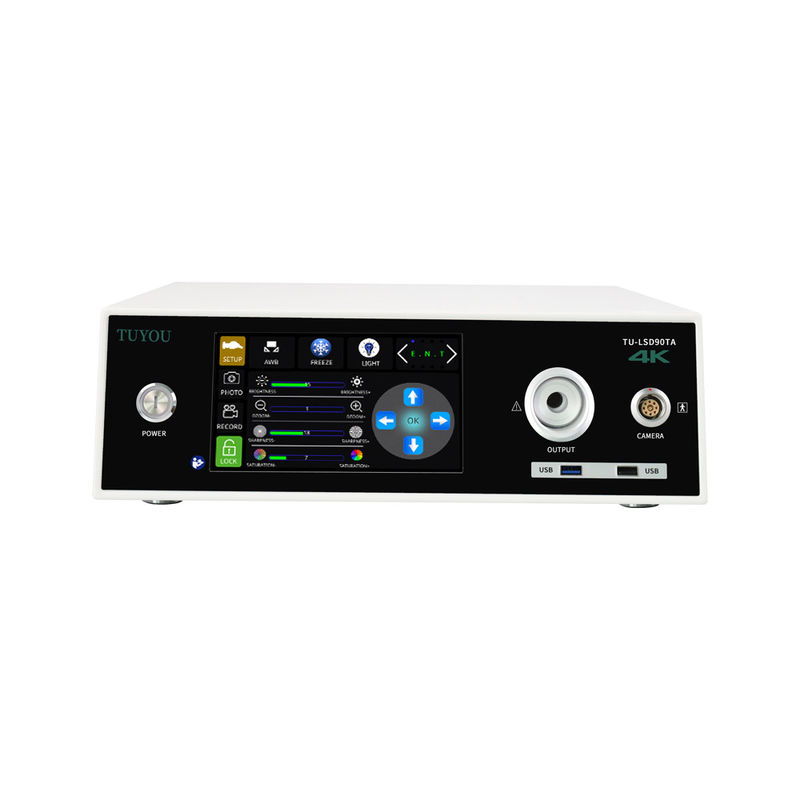

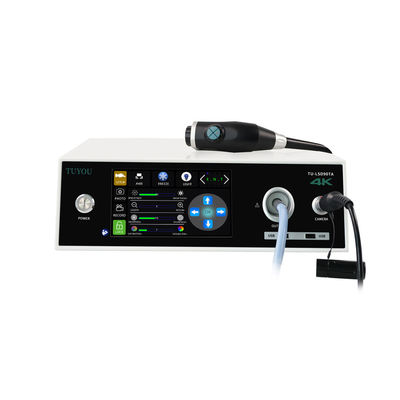

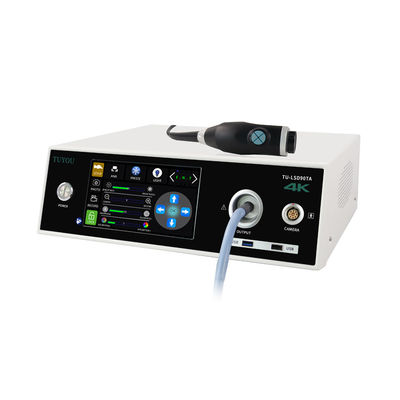

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture

Name: Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TU-LSD90TA
Price: 3,400.00 USD
Availability: InStock

Brand Name:	TUYOU
Model Number:	TU-LSD90TA
MOQ:	1
Delivery Time:	7working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ISO13485 FDA

Packaging Details:

48.5*46.5*24cm

Supply Ability:

1000

Highlight:

4K Resolution Endoscope System

4K Resolution Medical Endoscope System

Medical 7 Touchscreen Endoscope System

Product Description

Products Description

System Parameters

Input Interface :SDI 4K 60FPS

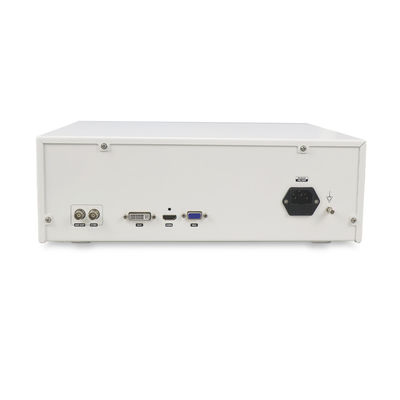

Output Interface:HDMI/DVI/VGA/LVDS/SDI/CVBS

Keypad Control:Control the mainboard menu and shortcut keys through RX/TX

Power:AC110V~240V

U Disk:U disk USB2.0/USB3.0 (up to 32GB) to record and take photos

Shortcut Key Function:Freeze/White Balance/Video/Photo/Digital Zoom

Noise:<45db

Working Environment:-10ºC~60ºC

Product Size:L336*W330*H116mm

Net Weight:8KG

Endoscope Camera System

Hot Selling Medical Touchscreen Endoscope System 4K Resolution with Video Capture

1.High resolution,4K 3840*2160,60FPS；

2.Advanced processor,Fast response without delay

3.High color reproduction

4.Four levels enhance function,especially for laparoscopy.

5. 4KHDMI output*3(optional)

Camera Parameters
Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3840(H) × 1920(V)Approx. 4M pixels
Resolution	SDI 4K 60fps
FREEZE	Support
AWB	Support
Min-illumination	Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)	More than 42Db(AGC off)
D-ZOOM	Image zoom 1-8X
Color	RED/GREEN/YELLOW/BLUE
Brightness	1-30 steps
Sharpness	1-40 steps
Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30ºC~70ºC
Power(Max.) Supply	DC12V ±10% <1.7W
Working Current	140mA±10mA

Light Source Parameters
Light Type	LED
Effective Optical Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support
Light Emitting Area (mm²)	3.8

1. Medical Endoscope Camera adapts latest technology provides sharper details with low delay and high color accuracy;

2. When AWB uses information from the scene and calibrates how white object should appear under different light sources and condition, doctors can achieve actual color rendition and accurate results;

3. Different color's settings, USB record function, freeze and zoom in/out, these multi-functions can always meet doctor's need;

4. Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup;

5. Built-in 100 Watts Cold LED Light Source works great with the high sensitivity of the camera sensor;

6. Multy speciality modes available in different types of Technology Surgery available direct on the front touch screen menu like Laparoscopy, ENT, Arthroscope, Fiber, Hysteroscope etc.

Customer Feedback

Certificates

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 4

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 5

Company Profile

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 6

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 7

Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.

We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

Package &Delivery

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 8

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 9

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 10

Hot Selling Medical 7 Touchscreen Endoscope System 4K Resolution with Video Capture 11

FAQ

Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.

Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.

Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
