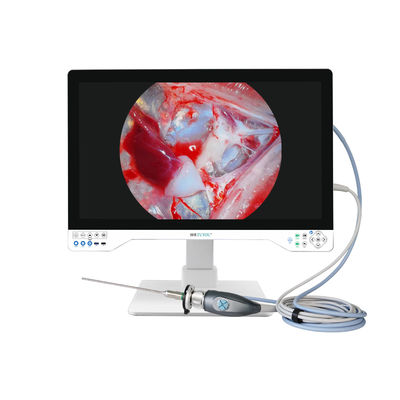

TUYOU TU-32LSD1A 4K 32-inch Medical Endoscopy Camera with SONY CMOS Sensor Multi-language Support and Shortcut Key Function

Name: TUYOU TU-32LSD1A 4K 32-inch Medical Endoscopy Camera with SONY CMOS Sensor Multi-language Support and Shortcut Key Function
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TU-32LSD1A
Price: 6,500.00 USD
Availability: InStock

Brand Name:	TUYOU
Model Number:	TU-32LSD1A
MOQ:	1
Delivery Time:	3-15
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA,SHENZHEN

Certification:

CE,ISO13485,FDA

Waterproof Level:

IPX8

Image Sensor:

1/2.8" SONY CMOS

Sensor Type:

CMOS

Warranty:

2 Years

Material:

Metal, Plastic

Type:

Endoscope

Battery Life:

8 Hours

Shoutcut Key Function:

Freeze/digital Zoom/white Balance

Light Source:

LED

Monitor:

32 Inch

Model:

TU-32LSD1A

Resolution:

4k （3920*2160）

Packaging Details:

93*35*69CM 44KG

Supply Ability:

2000 units per month

Highlight:

SONY CMOS Sensor Medical Endoscopy Camera

Multi-language Support Endoscopic Camera

Shortcut Key Function All-in-One Endoscope Camera

Product Description

Company Introduction

Our advanced endoscopic imaging systems integrate optics, electronics, and precision mechanics, enabling seamless compatibility with a full range of endoscopes—including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. This versatility allows support across diverse clinical scenarios, spanning from ENT diagnostics to urological and gynecological interventions.

When paired with medical-grade display technology, the systems deliver images in Full HD and even 4K resolution. They ensure exceptional clarity, accurate color reproduction, and meticulous detail rendering, thereby providing reliable backing for precise diagnosis and minimally invasive surgical procedures.

Engineered for portability and intelligent operation, select models feature touch control functionality and anti-interference capabilities. These design highlights work to enhance surgical efficiency and ultimately improve patient treatment outcomes.

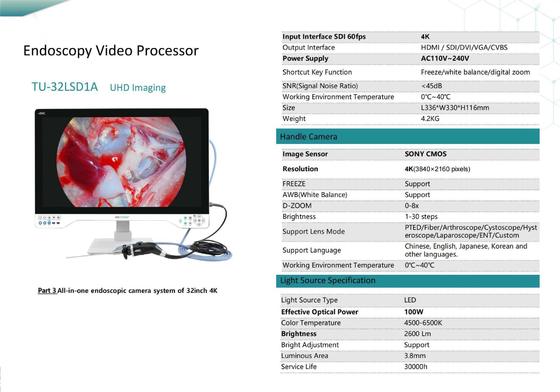

Product Parameters

Product Item No.

TU-32LSD1A(4K Carema)

System Parameters
Input Interface	32INCH 4K
Output Interface	HDMI/SDI/CVBS/VGA/DVI
Keypad Control	Control the motherboard menu and shortcut keys through RX/TX
Power	AC110V~240V
Built-in Light Source Efficial Power	100W
U Disk	U disk USB2.0*2 (up to 32GB) to record and take photos
Shortcut Key Function	Freeze/white balance/video/photograph/digital zoom
SNR(Signal Noise Ratio)	<45db
Working Environment	-10℃~60℃
Product Size	L336W330H116mm

Camera Parameters
Image Sensor	CMOS
Effective Pixels	3920(H) × 2160(V)Approx. pixels
Resolution	High resolution 4K
FREEZE	Support
AWB	Support
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Mode	Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30℃~60℃

TUYOU LED Cold Light Source with 7-inch Touch Screen for Medical Surgical Illumination 4K Laparoscopic Endoscope Camera

TUYOU TU-32LSD1A 4K 32-inch Medical Endoscopy Camera with SONY CMOS Sensor Multi-language Support and Shortcut Key Function 3

TUYOU TU-32LSD1A 4K 32-inch Medical Endoscopy Camera with SONY CMOS Sensor Multi-language Support and Shortcut Key Function 6

FAQ

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers, we have 4 production lines and R&D team.

Q: Where are you ?

A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?

A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?

A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?

A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q:What's the payment term?

A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
