products details
|

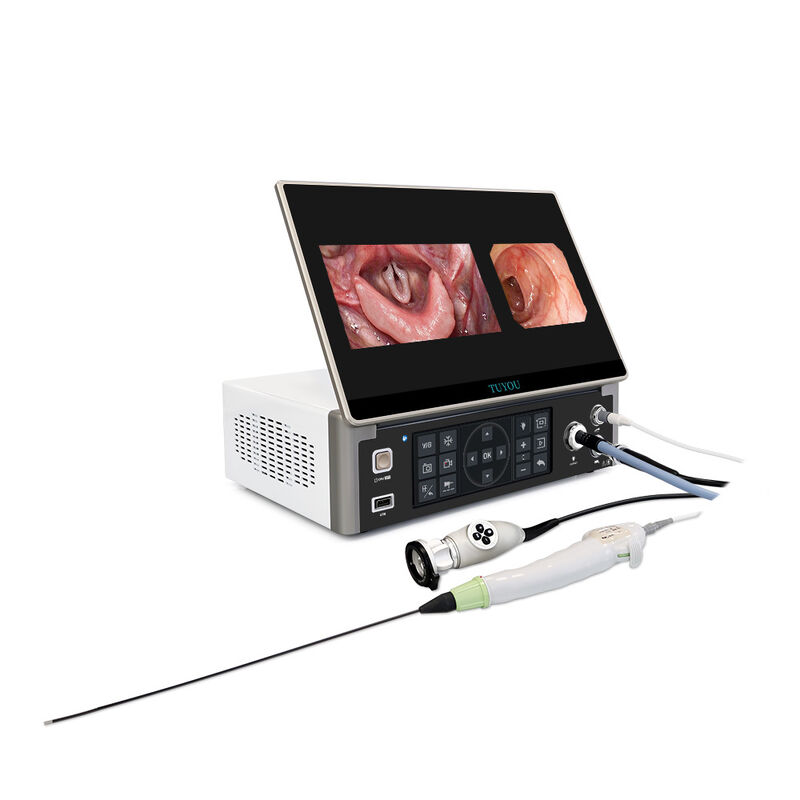

13.3inch Flexible and Rigid Dual Endoscopy Camera System with 4K Imaging
Detail Information
Display:
13.3-inch Integrated Monitor
Video Output:
HDMI, SDI, DVI, VGA, CVBS (Simultaneous)
Recording Format:
MP4
Light Source:
120W LED
Control:
Mouse, Keyboard, Foot Pedal Support
Function:
Both Can Connect Rigid And Flexible
Highlight:
13.3inch flexible endoscopy camera system
,rigid dual endoscopy camera 4K imaging
,medical endoscopy camera with 4K
Product Description
The TU-DMS133 Series is a compact 13.3" all-in-one endoscopic solution combining FHD/4K imaging with rigid and flexible dual-system capabilities. With multiple sensor options, extensive lens mode support, and a built-in 256GB hard drive, it is the ultimate tool for modern endoscopy.
| Module | Feature | Specifications |
|---|---|---|
| System | Display & Imaging | 13.3-inch All-in-One, FHD (TU-DMS133FF) / 4K (TU-DMS133KF) |
| Rigid Camera Processor | Interfaces | Input: SDI 60fps (1080P/4k); Output: HDMI / SDI / DVI / VGA / CVBS |
| Rigid Camera Processor | Power & Storage | AC110V~240V; Built-in 256GB Hard Drive with Video Playback |
| Rigid Camera Processor | Functions | Freeze, White Balance, Digital Zoom (0-8x); Recorder Supported |
| Rigid Scope Handle | Image Sensor | SONY CMOS |
| Rigid Scope Handle | Resolution | 1080P (1920×1080) for 4K Model; 4K (3840×2160) for FHD Model |
| Rigid Scope Handle | Lens Modes | PTED / Fiber / Arthroscope / Cystoscope / Hysteroscope / Laparoscope / ENT / Custom |
| Flexible Video Endoscope | Light Source | LED |
| Flexible Video Endoscope | Supported | Rhinolaryngoscope, Bronchoscope, Cystoscope, Ureterorenoscope |
| General | Environment & Language | Working Temp: 0℃~40℃; Languages: Chinese, English, Japanese, Korean, etc. |
