products details
|
|

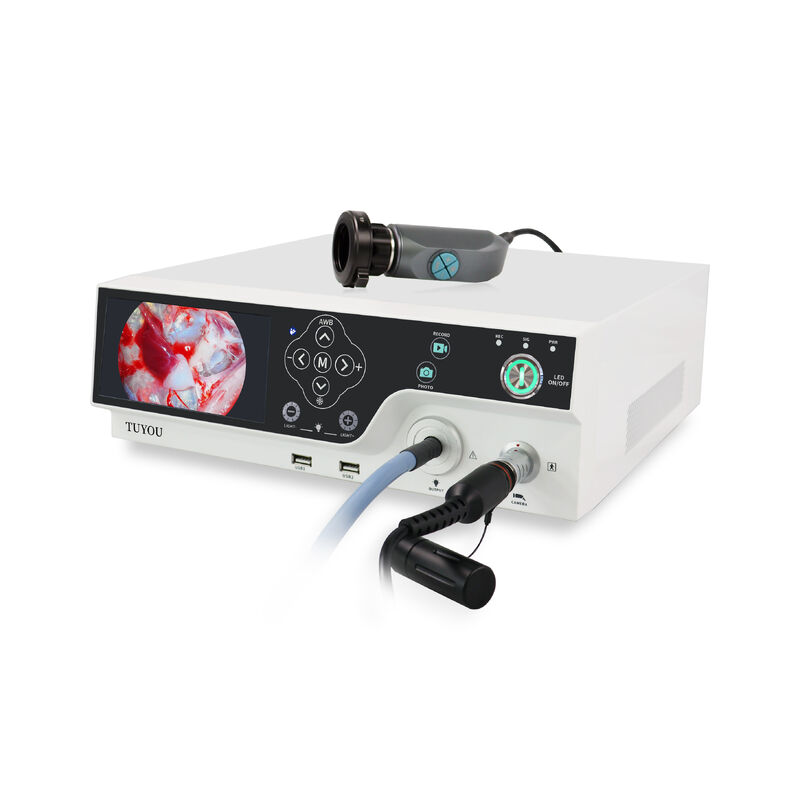

Full HD Integrated Endoscopy System | 6" Screen, 100W LED & Sony CMOS Camera
Detail Information
Highlight:
Full HD endoscopy system with 6" screen
,Portable endoscope camera with Sony CMOS
,100W LED endoscope system with warranty
Product Description
Upgrade your clinic with this compact FHD imaging system. Includes 6-inch real-time display, 1080P camera, and 50,000h LED light source. Easy USB recording and wide compatibility for surgical procedures.
Specifications
Full technical parameters, organized by subsystem.
Endoscopy Video Processor
| Parameter | Value |
|---|---|
| Input Interface (SDI 60fps) | 1080P |
| Output Interface | HDMI / SDI / DVI / VGA / CVBS |
| Power Supply | AC 110V – 240V |
| Shortcut Key Function | Freeze / White balance / Digital zoom |
| SNR (Signal Noise Ratio) | < 45 dB |
| Working Environment Temperature | 0 °C – 40 °C |
| Expandable USB Storage Drive | USB 2.0 / USB 3.0 (up to 32 GB) |
Handle Camera
| Parameter | Value |
|---|---|
| Image Sensor | SONY CMOS |
| Resolution | 1080P (1920 * 1080 pixels) |
| Freeze | Support |
| AWB (Auto White Balance) | Support |
| D-Zoom (Digital Zoom) | 0 – 8* |
| Brightness | 1 – 30 steps |
| Support Lens Mode | PTED / Fiber / Arthroscope / Cystoscope / Hysteroscope / Laparoscope / ENT / Custom |
| Support Language | Chinese, English, Japanese, Korean and other languages |
| Working Environment Temperature | 0 °C – 40 °C |
Light Source Specification
| Parameter | Value |
|---|---|
| Light Source Type | LED |
| Effective Optical Power | 100 W |
| Color Temperature | 4500 – 6500 K |
| Brightness | 2600 Lm |
| Brightness Adjustment | Support |
| Luminous Area | 3.8 mm |
| Service Life | 50,000 h |
Ordering Information
| Parameter | Value |
|---|---|
| Procurement Code | TV-LSD101B |
| Description | FHD, built-in LED light source, USB recorder |
